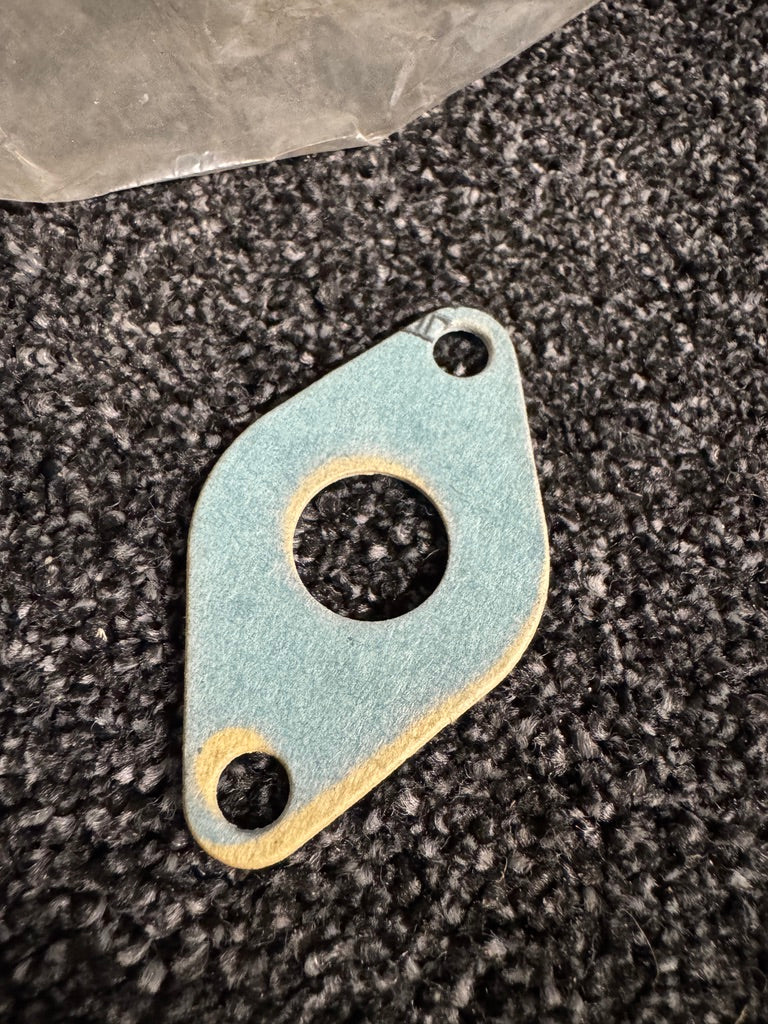

Genuine BMW E3 E9 E12 E23 E24 Auxiliary Air Slide Gasket – NOS – 11611730239

Genuine BMW New Old Stock gasket for the auxiliary air slide valve fitted to selected classic BMW models with an M30 petrol-injection engine.

The auxiliary air slide, also known as the additional air slide valve or auxiliary air valve, supplies additional intake air during cold starting and engine warm-up. This gasket seals the valve against its mounting surface and helps prevent unmetered air and vacuum leaks.

One gasket is required per vehicle. This listing is for one individual gasket.

Product details

• Product: Auxiliary air slide valve gasket
• Alternative description: Additional air valve gasket
• BMW catalogue description: Gasket, asbestos free
• German description: Dichtung asbestfrei
• Manufacturer: Genuine BMW
• BMW part number: 11611730239
• Formatted BMW number: 11 61 1 730 239
• Short reference number: 1730239
• Previous BMW part number: 11611254152
• Formatted previous number: 11 61 1 254 152
• Installation position: Auxiliary air slide valve
• Engine family: M30
• Material: Asbestos-free gasket material
• Mounting holes: Two
• Quantity supplied: One gasket
• Required quantity per vehicle: One
• Condition: New Old Stock
• Availability: Discontinued by BMW

Vehicle compatibility

Suitable for selected BMW models equipped with the corresponding M30 fuel-injection system and auxiliary air slide valve.

BMW New Six E3

• BMW 3.0Si
• BMW 3.3Li

BMW E9 Coupé

• BMW 3.0CSi
• BMW 3.0CSL with the corresponding injection system

BMW 5 Series E12

• BMW 528i
• BMW 530i

BMW 7 Series E23

• BMW 732i
• BMW 733i

BMW 6 Series E24

• BMW 630CSi
• BMW 633CSi
• BMW 635CSi with the corresponding early auxiliary air slide system

Compatibility depends on the production date, market specification, fuel-injection system and installed auxiliary air slide valve.

Later vehicles may use a different idle-control system or gasket arrangement. Always compare the BMW part number, gasket shape, bolt-hole spacing and central opening with the original part before ordering.

BMW and reference numbers

• 11611730239 – Genuine BMW asbestos-free gasket
• 11 61 1 730 239 – Formatted BMW catalogue number
• 1730239 – Short BMW reference number
• 11611254152 – Previous BMW gasket number
• 11 61 1 254 152 – Formatted previous number
• 1254152 – Short previous reference number
• 11611263200 – Associated auxiliary air slide valve; not included

BMW part number 11611730239 replaced the earlier 11611254152 gasket. The newer version was manufactured without asbestos and has since been discontinued by BMW.

Condition

Genuine BMW New Old Stock component that has never been installed.

The gaskets have been stored together in replacement packaging rather than their individual original BMW packaging. Due to their age and long-term storage, the following may be present:

• Storage dust and dirt
• Light surface discolouration
• Cosmetic marks
• Minor pressure or storage marks
• Ageing of the gasket material
• Damaged or missing original packaging

Each gasket should be inspected for cracks, delamination, deformation and brittleness before installation.

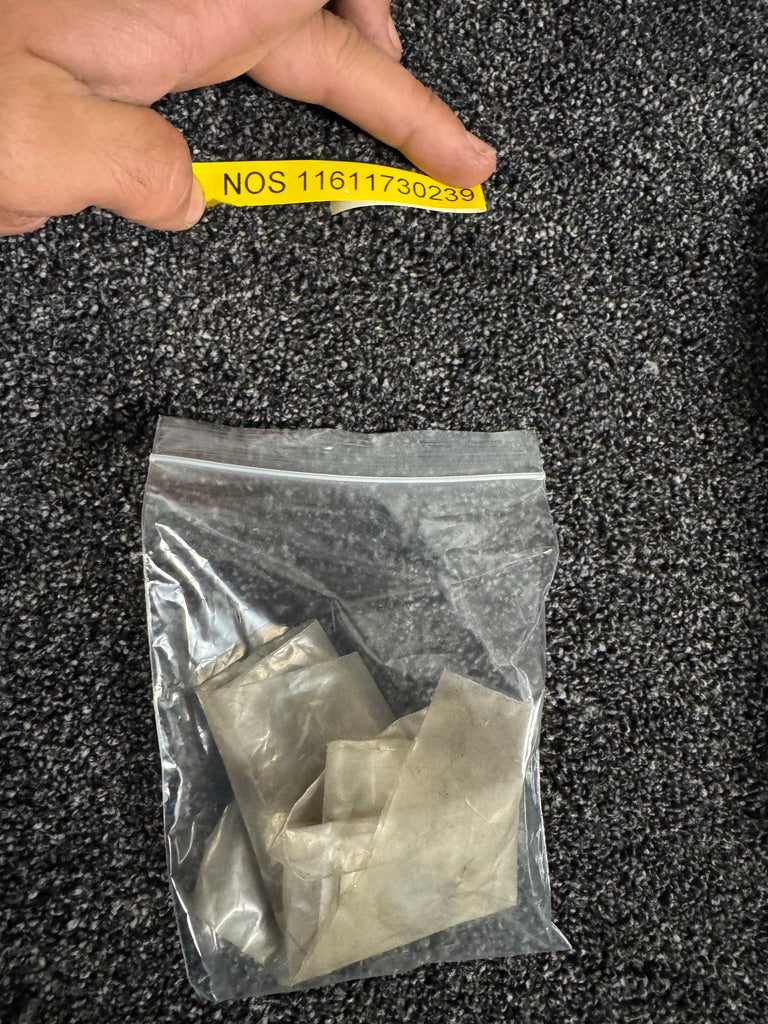

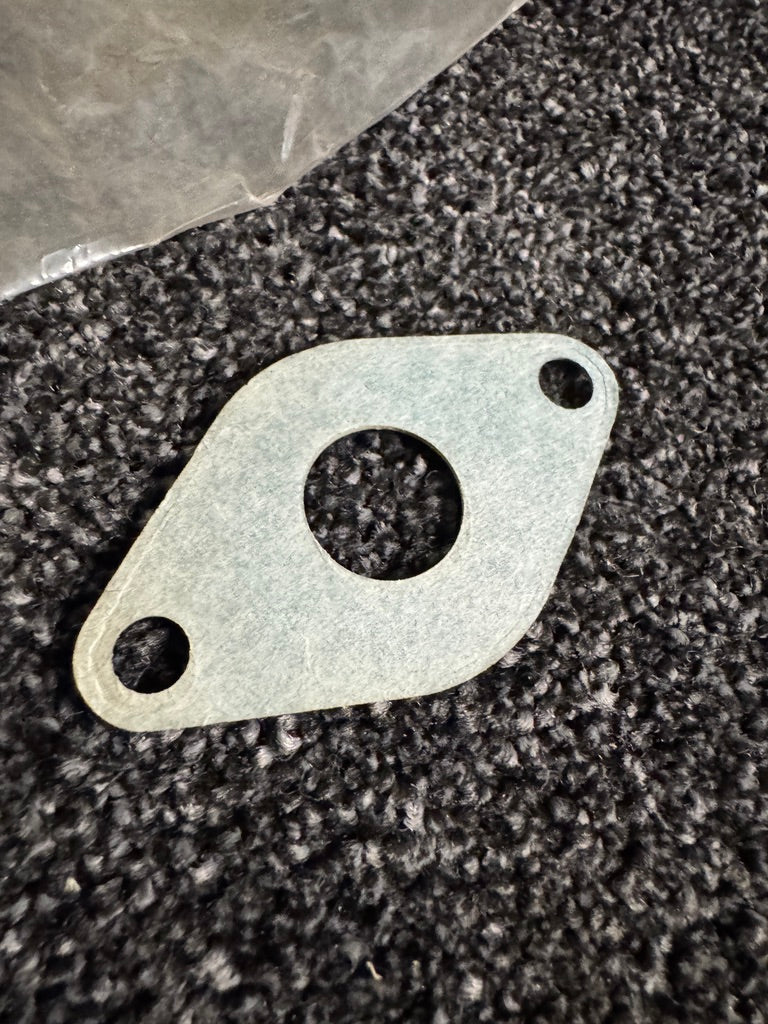

Supplied exactly as shown in the photographs.

Included

• One genuine BMW auxiliary air slide valve gasket

The following are not included:

• Auxiliary air slide valve
• Mounting bracket
• Bolts or washers
• Coolant hoses
• Hose clamps
• Intake components
• Additional gaskets

Important quantity information

This listing is for one individual gasket.

BMW specifies one gasket per compatible vehicle. Therefore, one gasket is sufficient to install one auxiliary air slide valve.

The stated price is per gasket. Multiple gaskets may be ordered separately while stock remains available.

Installation recommendation

Before installation:

• Confirm the BMW part number and vehicle application
• Compare the gasket shape with the original component
• Check the auxiliary air slide valve for correct operation
• Clean both sealing surfaces thoroughly
• Remove all remains of the old gasket
• Avoid scratching or damaging the aluminium mounting surfaces
• Check the mounting surface for corrosion or distortion
• Install the gasket dry unless the workshop manual specifies otherwise
• Tighten the mounting bolts evenly
• Inspect the surrounding coolant and air hoses
• Check for vacuum, air and coolant leaks after installation
• Confirm correct cold-start and warm-idle operation

Professional installation is recommended, particularly when working on an older Bosch fuel-injection and cold-start system.
