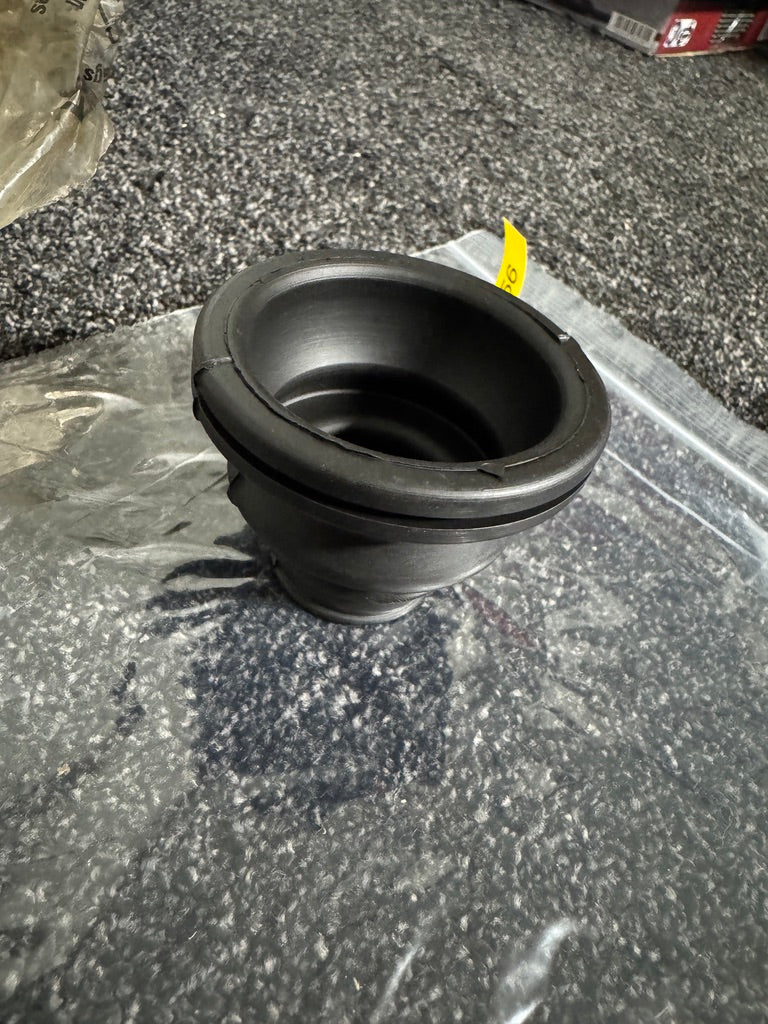

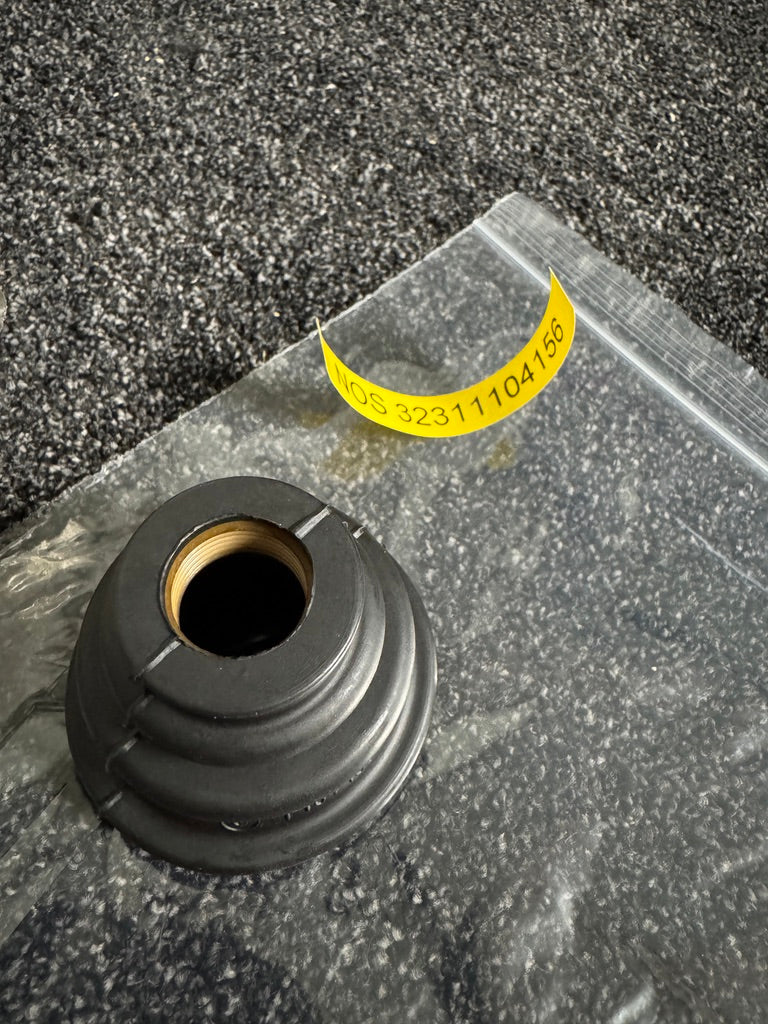

Genuine BMW E3 E9 E12 E24 Steering Column Rubber Boot – NOS / NLA – 32311104156

Genuine BMW New Old Stock rubber sealing boot for the steering column and steering spindle assembly fitted to selected classic BMW models.

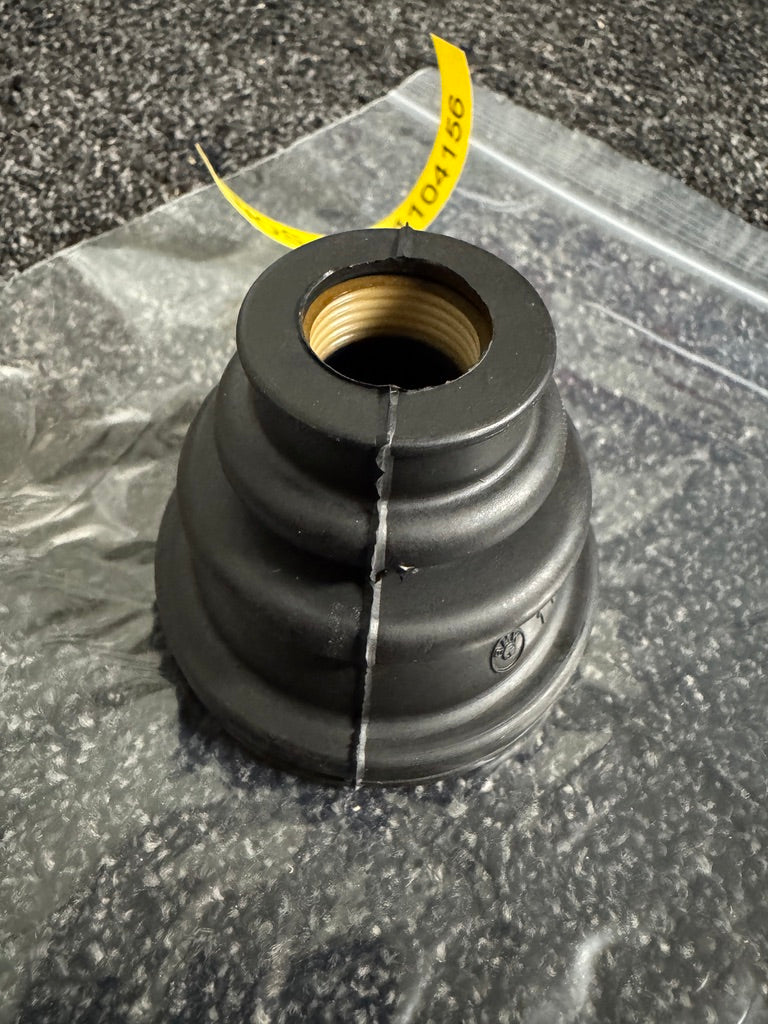

BMW describes this component as a “Cup”. It is a shaped rubber bellows with an integrated metal insert, designed to fit around the steering-column assembly and help protect the steering spindle area against dirt, moisture and other contamination.

BMW part number 32311104156 has been discontinued and is no longer regularly available new.

Product details

• Product: Steering-column rubber boot
• Alternative description: Steering spindle sealing cup
• BMW catalogue description: Cup
• German description: Manschette
• Manufacturer: Genuine BMW
• BMW part number: 32311104156
• Formatted BMW number: 32 31 1 104 156
• Short reference number: 1104156
• Installation position: Steering column / steering spindle
• Material: Moulded rubber with integrated metal insert
• Colour: Black
• Approximate catalogue weight: 48–49 grams
• Condition: New Old Stock
• Availability: Discontinued / NLA
• Quantity supplied: One

Vehicle compatibility

Suitable for selected classic BMW models equipped with the corresponding steering-column and steering-spindle arrangement.

BMW E3

Including selected versions of:

• BMW 2500
• BMW 2800
• BMW 2.8L
• BMW 3.0S
• BMW 3.0Si
• BMW 3.0L
• BMW 3.0Li
• BMW 3.3L
• BMW 3.3Li

BMW E9

Including selected versions of:

• BMW 2800CS
• BMW 2.5CS
• BMW 3.0CS
• BMW 3.0CSi
• BMW 3.0CSL

BMW 5 Series E12

Including selected versions of:

• BMW 518
• BMW 518i
• BMW 520
• BMW 520i
• BMW 525
• BMW 528
• BMW 528i
• BMW 530i
• BMW 533i
• BMW M535i

BMW 6 Series E24

Including selected early versions of:

• BMW 628CSi
• BMW 630CS
• BMW 633CSi
• BMW 635CSi

Compatibility depends on the vehicle model, production date, steering type, steering-column version and whether the vehicle is left- or right-hand drive.

Some vehicles use a different steering-column cup or sealing boot. Always compare the BMW part number, diameter, rubber profile and metal insert with the original component before ordering.

BMW and related reference numbers

• 32311104156 – Steering-column cup / rubber boot
• 32 31 1 104 156 – Formatted BMW catalogue number
• 1104156 – Short BMW reference number
• 32311100347 – Earlier or alternative steering-column cup for selected applications
• 32311113307 – Alternative steering-column cup for selected applications

The alternative part numbers are not included and are not automatically interchangeable for every vehicle.

Condition

Genuine BMW New Old Stock component that has never been installed.

The rubber boot appears well preserved and retains a clean overall appearance. Due to its age and long-term storage, the following may still be present:

• Light storage dust
• Minor cosmetic storage marks
• Slight surface discolouration
• Marks on the metal insert
• Age-related changes to the rubber compound

As with all older NOS rubber components, the boot must be carefully checked for flexibility, cracks, hardening and deformation before installation.

The component has not been fitted or function-tested. Supplied exactly as shown in the photograph.

Included

• One genuine BMW steering-column rubber boot
• Integrated metal insert
• Protective storage bag shown in the photograph

The following are not included:

• Steering column
• Steering spindle
• Steering shaft
• Steering-column bearing
• Universal joint
• Fasteners
• Additional seals or bushes
• Installation tools

Installation recommendation

Before installation:

• Confirm BMW part number 32311104156
• Verify the vehicle model and production date
• Compare the dimensions and profile with the original boot
• Check the rubber carefully for cracks or hardening
• Inspect the metal insert for corrosion or deformation
• Clean the steering-column mounting surface
• Inspect the steering-column bearing and surrounding components
• Use only a rubber-compatible lubricant if lubrication is required
• Do not stretch or force the rubber excessively
• Check that the boot is seated evenly after installation
• Confirm that the steering column moves freely without binding

Because this component forms part of the steering-column assembly, professional installation is recommended.
