Monroe BMW Front Strut Insert Fitting Kit – NOS – 7090138

New Old Stock Monroe installation hardware set for selected front suspension strut inserts fitted to classic BMW models.

The set contains the threaded gland nut used to secure the shock-absorber insert inside the front strut housing and the upper piston-rod retaining nut.

The original Monroe installation instructions identify this hardware for use with Monroe shock-absorber references MG998, MR940 and MG971.

Product details

• Product: Front strut-insert installation hardware
• Alternative description: Shock-absorber gland-nut fitting kit
• Manufacturer: Monroe
• Packaging/reference number: 7090138
• Application: Front suspension
• Installation position: Front axle
• Shock-absorber design: Suspension strut insert
• Large component: Threaded strut gland nut
• Small component: Upper piston-rod retaining nut
• Compatible Monroe references: MG998, MR940 and MG971
• Material: Metal
• Finish: Grey metal and yellow-passivated finish
• Condition: New Old Stock
• Quantity supplied: One installation set
• Required quantity per vehicle: Normally two sets

Vehicle compatibility

This installation set is associated with Monroe front strut inserts MG998, MR940 and MG971, which were supplied for selected classic BMW models.

Potential applications include:

BMW New Six E3

• BMW 2500
• BMW 2800
• BMW 2.8 L
• BMW 3.0 S
• BMW 3.0 Si
• BMW 3.0 L
• BMW 3.3 L

BMW E9 Coupé

• Selected BMW 2800 CS
• Selected BMW 3.0 CS
• Selected BMW 3.0 CSi
• Other E9 models using the corresponding front strut insert

BMW 5 Series E12

• BMW 518
• BMW 518i
• BMW 520
• BMW 520i
• BMW 520/6
• BMW 525
• BMW 528
• BMW 528i

BMW 7 Series E23

• BMW 725i
• BMW 728
• BMW 728i
• BMW 730
• BMW 732i
• BMW 733i
• BMW 735i
• BMW 745i

BMW 6 Series E24

• BMW 628 CSi
• BMW 630 CS
• BMW 633 CSi
• BMW 635 CSi
• Selected E24 models using the corresponding Monroe front strut insert

BMW 5 Series E28

• BMW 518
• BMW 518i
• BMW 520i
• BMW 524d
• BMW 524td
• BMW 525e
• BMW 525i
• BMW 528i
• BMW 535i
• Selected BMW M535i versions without incompatible sports suspension

Compatibility depends on the exact Monroe shock-absorber insert, strut-housing thread, piston-rod thread, vehicle production date and installed suspension version.

This fitting kit should not be ordered solely by vehicle model. Always compare the gland-nut diameter, thread pitch, internal profile and upper retaining nut with the components supplied with the original Monroe shock absorber.

Vehicles equipped with M-Technic, sports suspension or a different strut-housing diameter may require different hardware.

Monroe and reference numbers

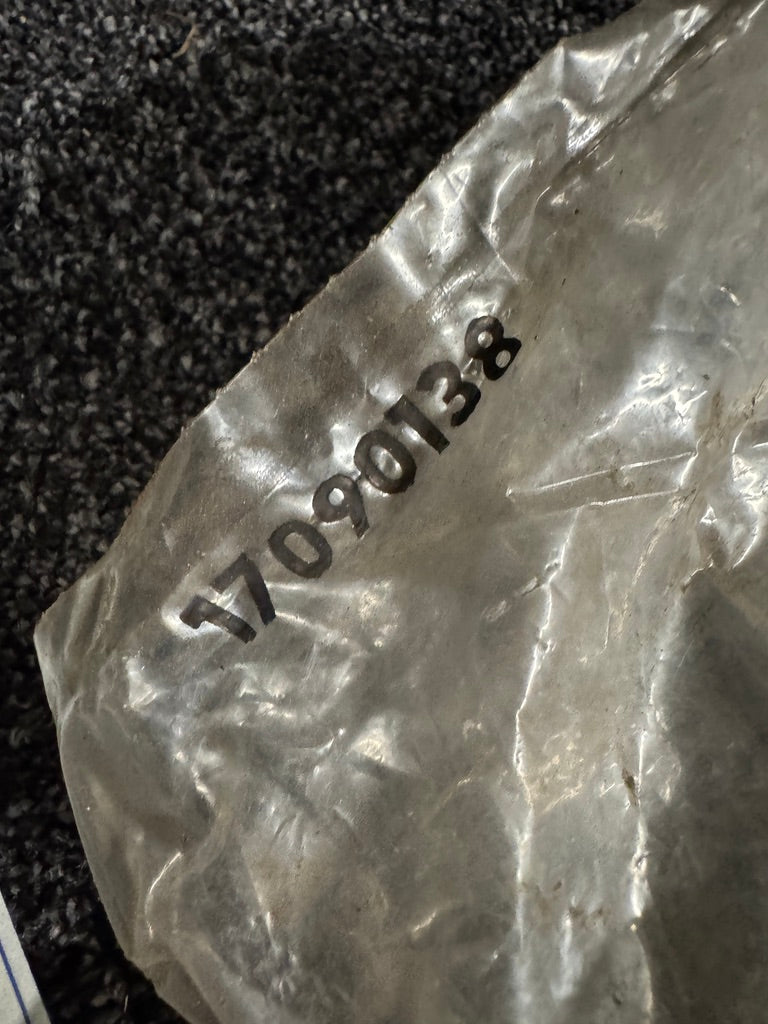

• 7090138 – Number printed on the original component packaging
• MG998 – Associated Monroe gas-pressure front strut insert
• MR940 – Associated Monroe oil-pressure front strut insert
• MG971 – Associated Monroe gas-pressure front strut insert

Known BMW shock-absorber references associated with these Monroe inserts include:

• 31321107572
• 31321112018
• 31321122000
• 31321124294
• 31321126643

These BMW references relate to complete shock absorbers or strut inserts and are provided for identification purposes only. No shock absorber is included in this listing.

Condition

New Old Stock Monroe installation components that have not been fitted.

Due to their age and long-term storage, the following may be present:

• Ageing, dirt and wear to the original plastic packaging
• Storage dust
• Minor scratches and handling marks
• Light surface discolouration
• Oxidation or changes to the plated finishes
• Folding, dirt and age-related wear to the installation instructions

The threaded components have not been installed or function-tested. All threads, dimensions and contact surfaces must be inspected before installation.

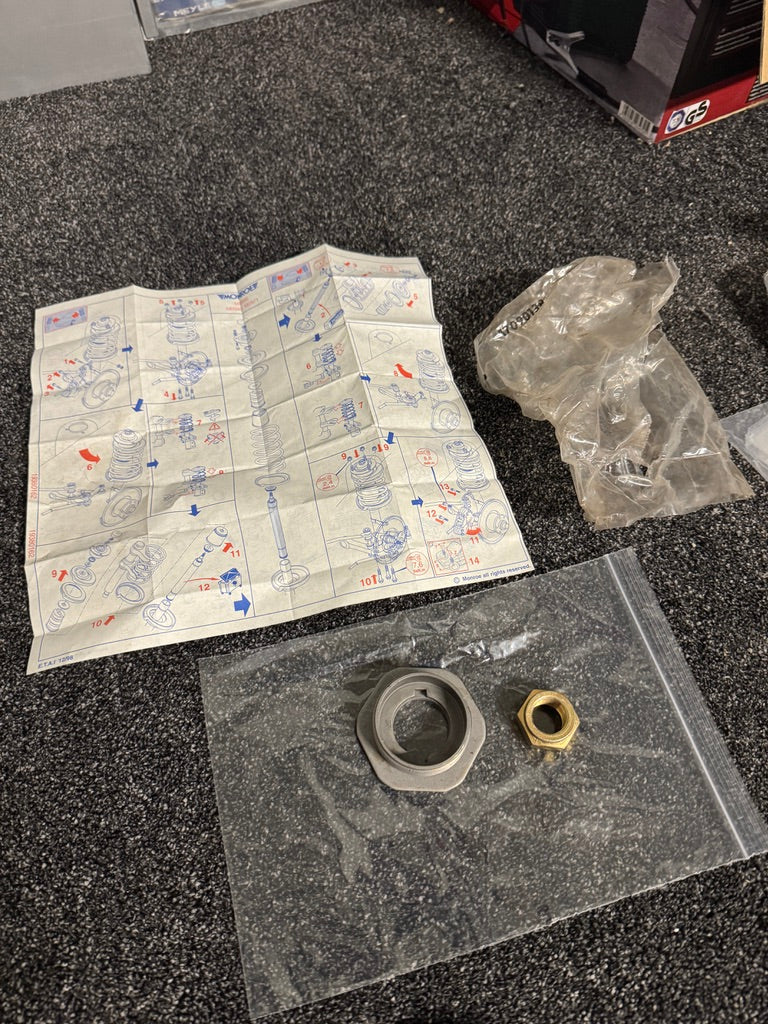

Supplied exactly as shown in the photographs.

Included

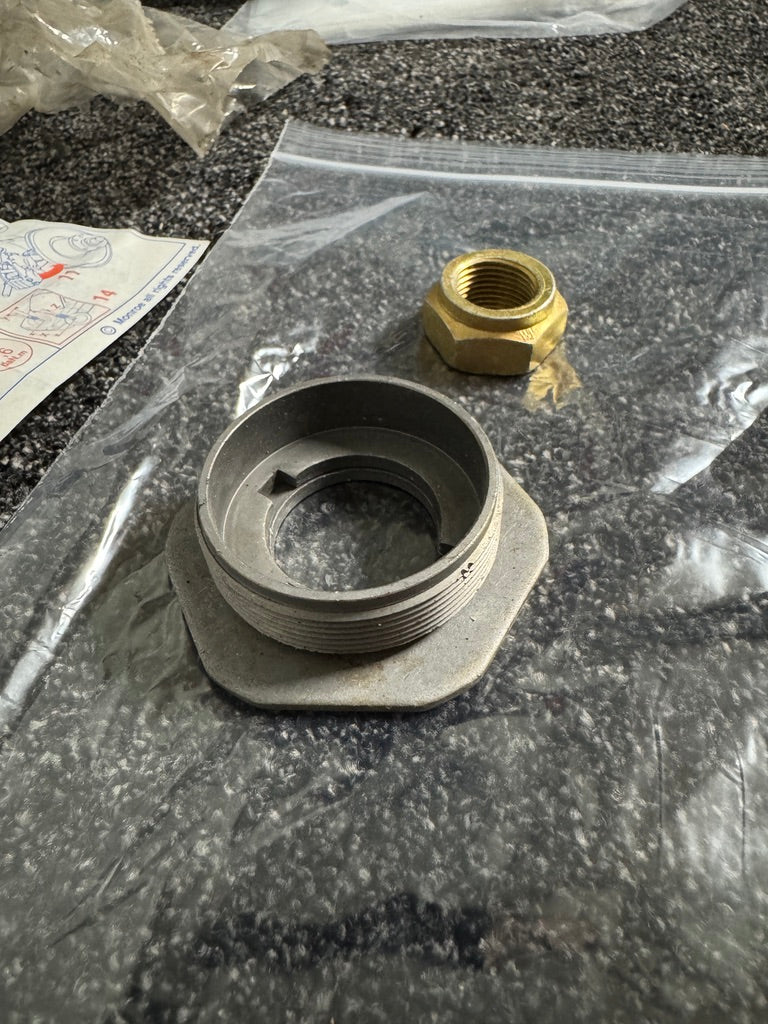

• One threaded strut-insert gland nut
• One upper piston-rod retaining nut
• Original Monroe plastic packaging

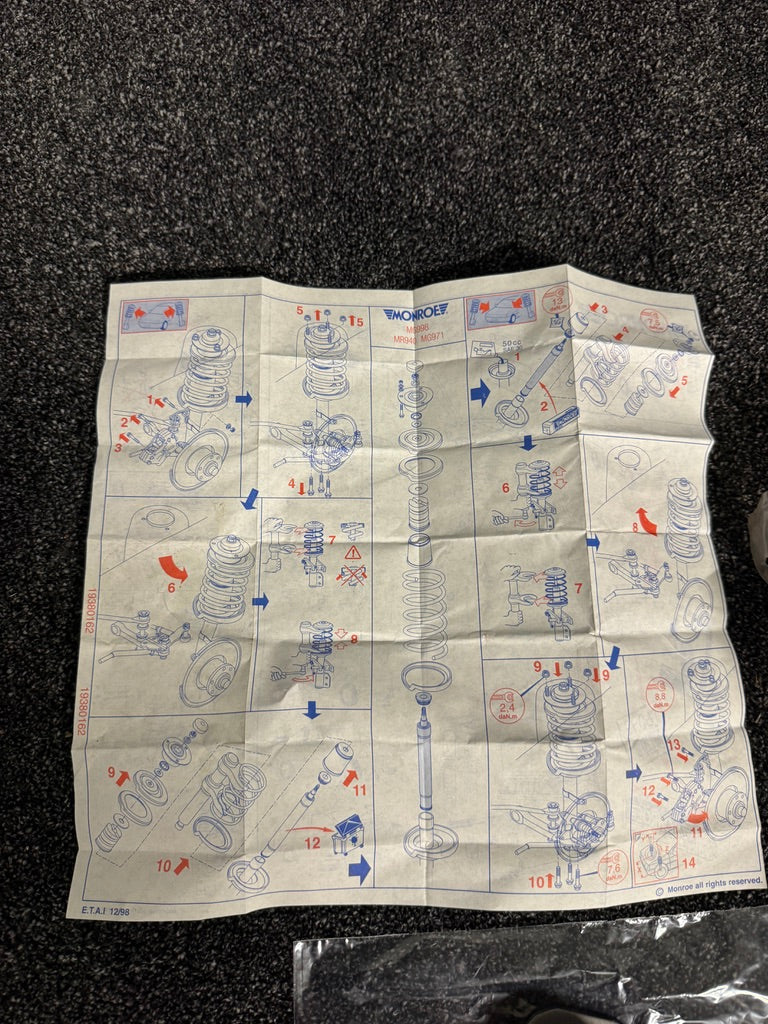

• Original Monroe installation instruction sheet

The following are not included:

• Shock absorber or strut insert
• Complete suspension strut
• Coil spring
• Spring seat
• Top mount
• Dust cover
• Bump stop
• Additional washers
• Installation tools

Important quantity information

This listing contains hardware for one front suspension strut.

A vehicle normally has two front struts. Two identical fitting sets may therefore be required when replacing both front shock-absorber inserts.

The stated price is for the complete set shown in the photographs.

Installation recommendation

Before installation:

• Confirm the Monroe shock-absorber reference
• Compare the gland nut with the original component
• Verify the external thread diameter and thread pitch
• Check that the gland nut correctly fits the strut housing
• Compare the upper retaining nut with the shock-absorber piston rod
• Clean the internal and external strut-housing threads
• Inspect all components for corrosion or thread damage
• Follow the supplied Monroe installation instructions
• Observe the specified tightening torques
• Never use damaged or incorrectly fitting threaded components
• Check that the strut insert is securely retained without movement
• Perform a wheel-alignment and complete suspension inspection after installation

Coil springs are stored under considerable tension and can cause serious injury. Installation should be carried out by a qualified technician using an approved spring compressor and suitable suspension tools.
