Genuine BMW 23121282394 Manual Gearbox Selector Shaft Seal – NOS

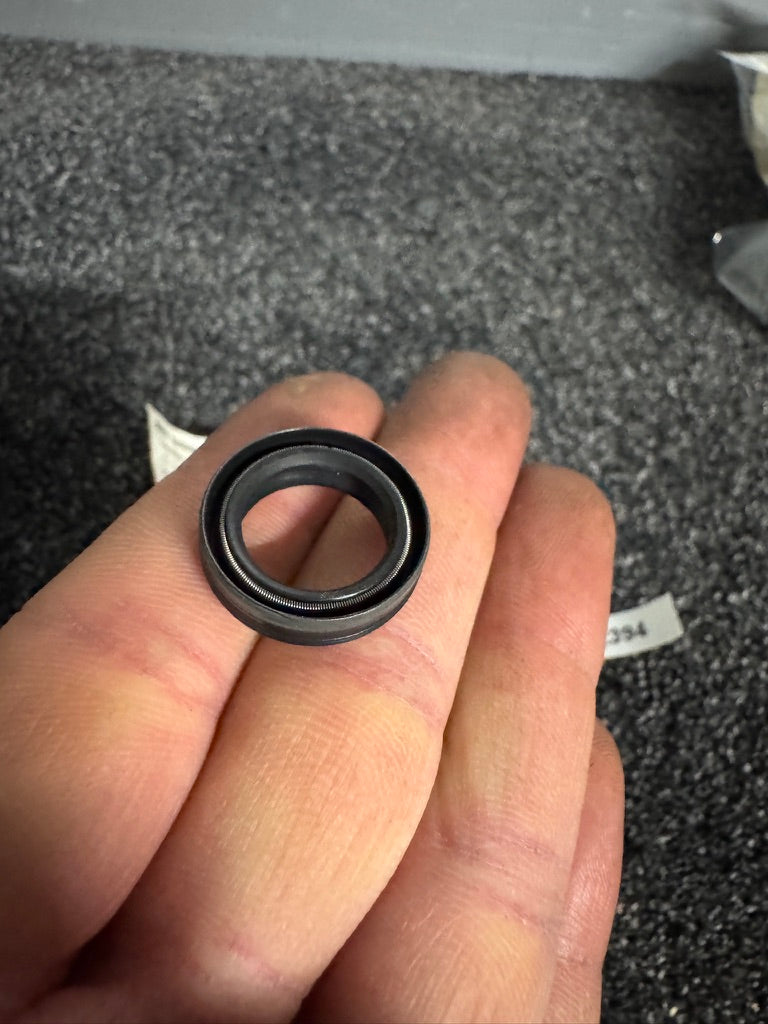

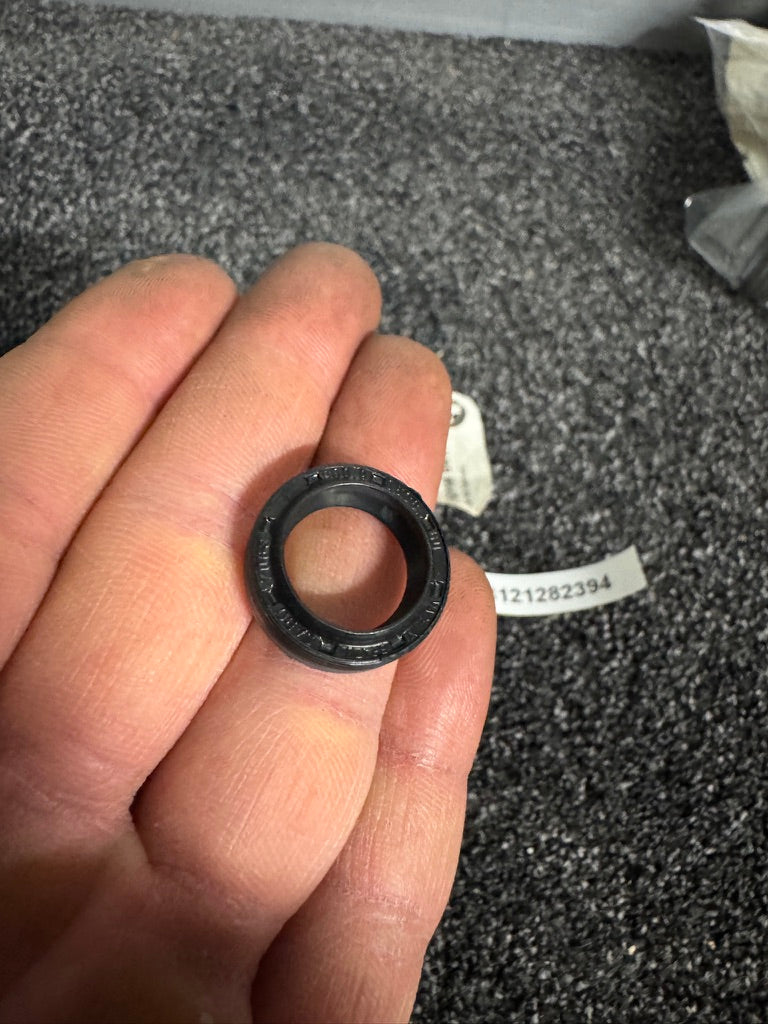

Genuine BMW New Old Stock oil seal for the selector shaft of selected BMW manual gearboxes.

This small radial shaft seal is fitted at the rear of the gearbox, around the selector shaft where it enters the transmission housing. It is positioned above the gearbox output shaft and prevents transmission oil from leaking along the selector shaft.

The seal is an original unused BMW part from older dealer stock.

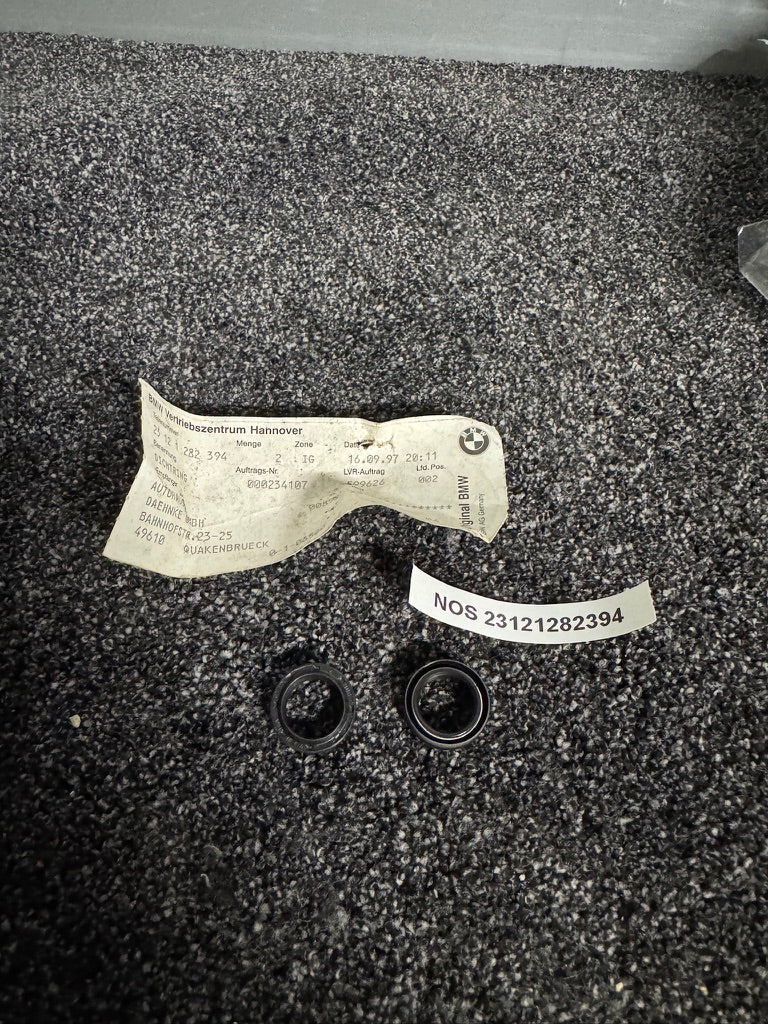

Important: two seals are visible in the photographs, but this product is sold individually. The stated price is for ONE seal only.

Product details

• Product: Manual gearbox selector shaft seal
• Alternative description: Shift shaft oil seal
• Alternative description: Gear selector rod seal
• Manufacturer: Genuine BMW
• BMW part number: 23121282394
• Formatted BMW number: 23 12 1 282 394
• Short reference number: 1282394
• Position: Rear of the manual gearbox
• Installation position: Around the selector shaft, above the output shaft
• Listed dimensions: 15 × 21 × 4 mm
• Seal type: Radial shaft oil seal
• Colour: Black
• Condition: New Old Stock
• Quantity supplied: One seal
• Quantity normally required: One per gearbox

Function

The selector shaft transfers movement from the gear linkage into the manual transmission. This seal closes the opening around the shaft and helps prevent gearbox oil from escaping from the rear transmission housing.

A worn, hardened or damaged selector shaft seal can cause oil residue around the gear linkage, selector shaft and rear of the gearbox.

This is not the larger gearbox output-shaft seal.

Vehicle compatibility

BMW part number 23121282394 was used with selected manual gearboxes fitted to various classic and later BMW models, including selected versions of:

• BMW E12
• BMW E23
• BMW E24
• BMW E28
• BMW E30
• BMW E32
• BMW E34
• BMW E36
• BMW E39
• BMW E46
• BMW Z3

Compatibility depends on the exact vehicle, production date and installed manual gearbox. Not every model or gearbox within these series uses this seal.

Suitable for manual transmissions only. It is generally not intended for automatic transmissions.

Always verify compatibility using the BMW part number, gearbox identification and dimensions of the original seal before ordering.

BMW and reference numbers

• 23121282394 – Original BMW part number
• 23 12 1 282 394 – Formatted BMW number
• 1282394 – Short BMW reference
• 23117537914 – Later related BMW replacement reference
• 23128677736 – Current 15 × 21 × 5 mm BMW selector-shaft seal used as a replacement in selected applications

Earlier BMW references associated with this seal design include:

• 23121222677
• 23121228333
• 23111204223
• 23111224801
• 23111224939
• 23121228443

Replacement and supersession information can vary according to the gearbox. Compare the original seal and consult the vehicle or gearbox catalogue before installation.

Condition

This is a genuine unused BMW New Old Stock component.

Due to its age and long-term storage, it may show:

• Light storage marks
• Dust or residue
• Minor cosmetic ageing
• Age-related discolouration
• Wear or damage to the original paper packaging and dealer documentation

Although unused, this is an older rubber sealing component. Inspect the sealing lip, outer surface and internal tension spring for hardening, cracks, deformation or other deterioration before installation.

Included

• One genuine BMW selector shaft seal
• Sold individually
• Price is per single seal

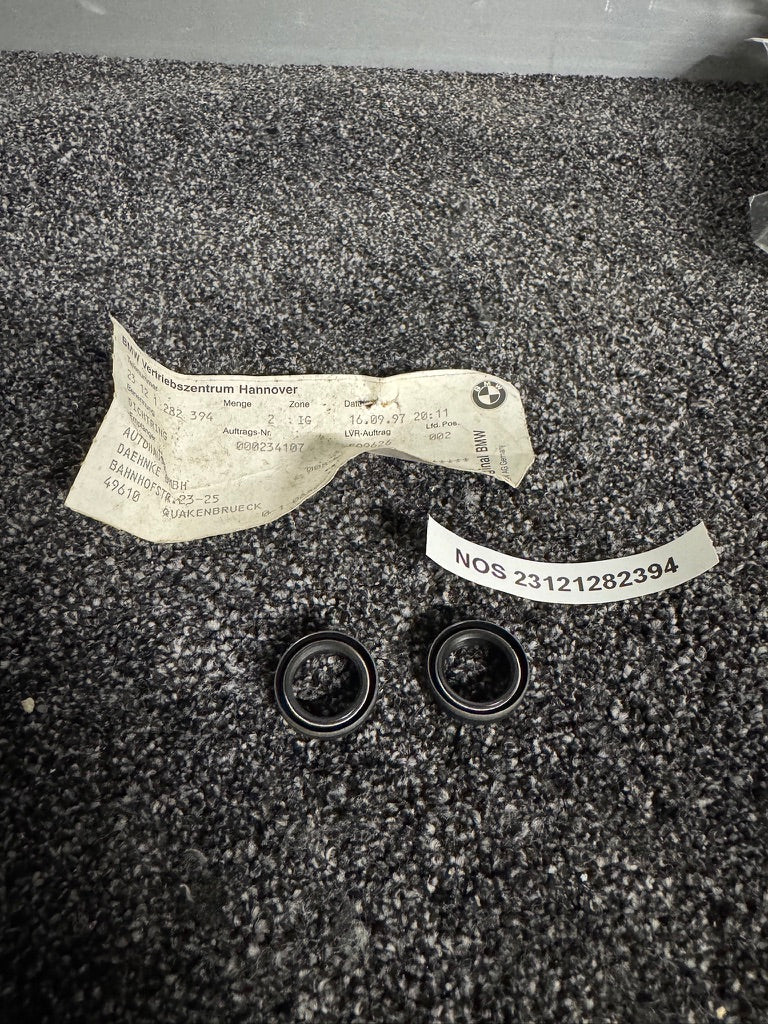

Two seals are shown in the photographs to display the available stock. Purchasing one unit means that one seal will be supplied.

Historic BMW paperwork shown in the photographs is primarily included for identification and may not be supplied with every individual seal.

Installation recommendation

Before installation:

• Confirm the BMW part number and gearbox application
• Compare the new seal with the removed seal
• Check the selector shaft for corrosion, wear or grooves
• Carefully remove the old seal without damaging the shaft or housing
• Clean the seal bore and surrounding transmission housing
• Lightly lubricate the sealing lip with the correct gearbox oil
• Protect the sealing lip from sharp shaft edges during installation
• Press the seal squarely and evenly into the correct position
• Refit the selector linkage correctly
• Check the gearbox oil level
• Inspect the area for leakage after installation

Professional installation by someone familiar with BMW manual gearboxes is recommended.
