Genuine BMW M30 Early Thermostat Housing 11531250352 – Used

Genuine used BMW thermostat housing for early M30 inline-six engines, dating from approximately 1977/1978.

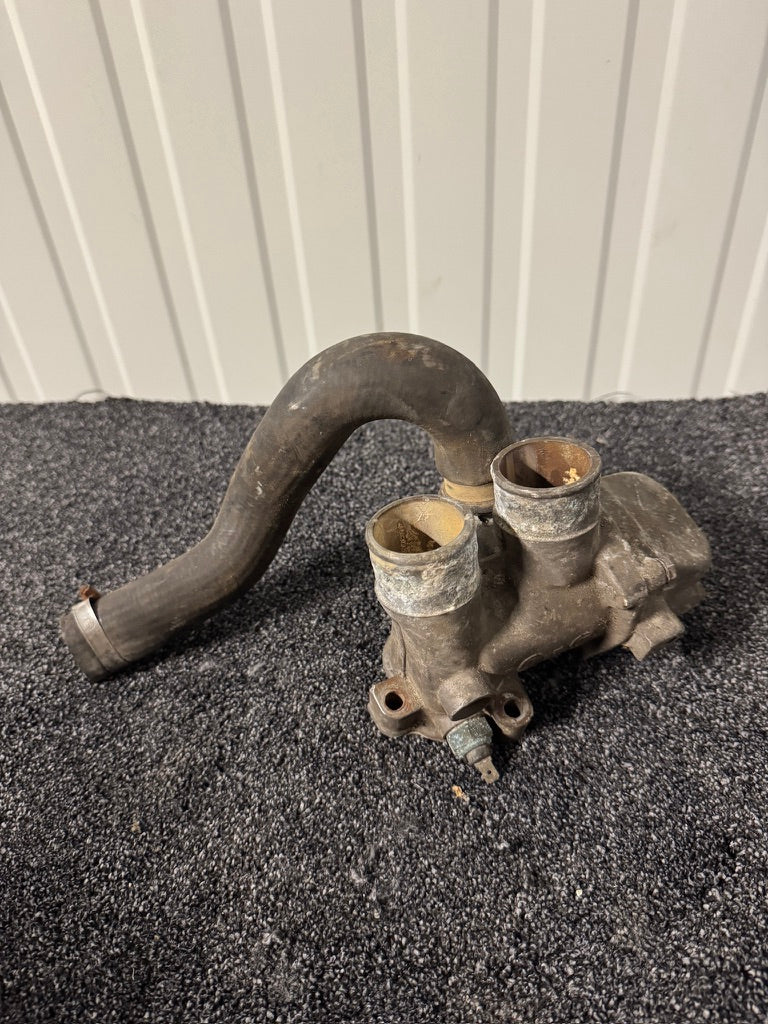

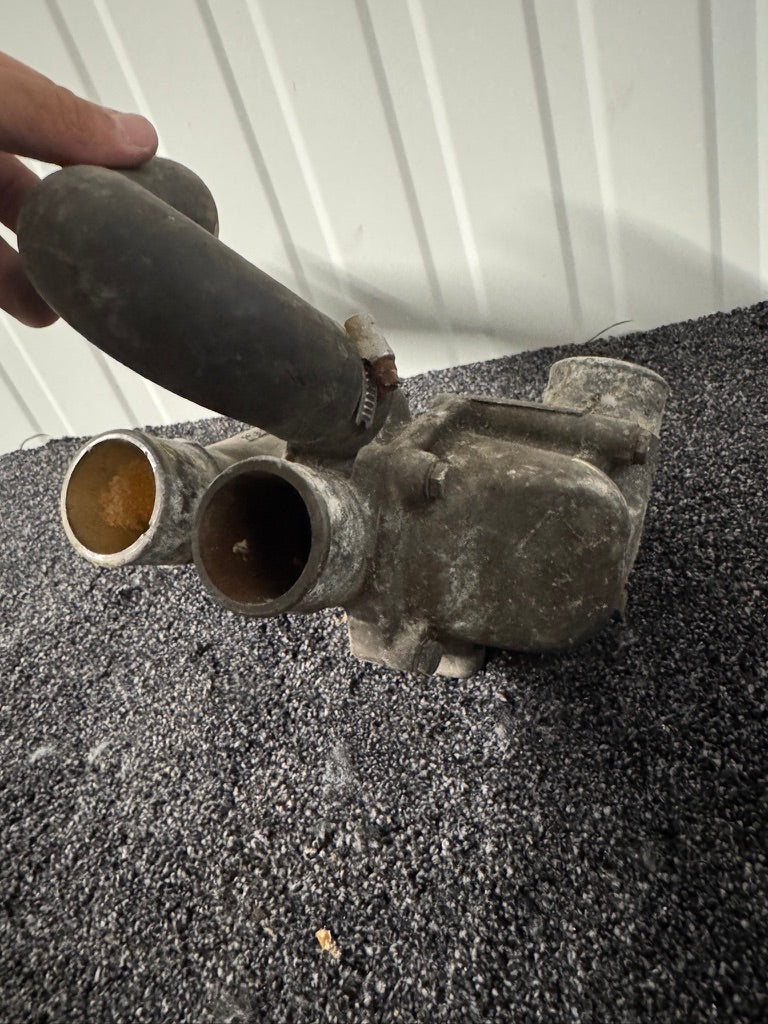

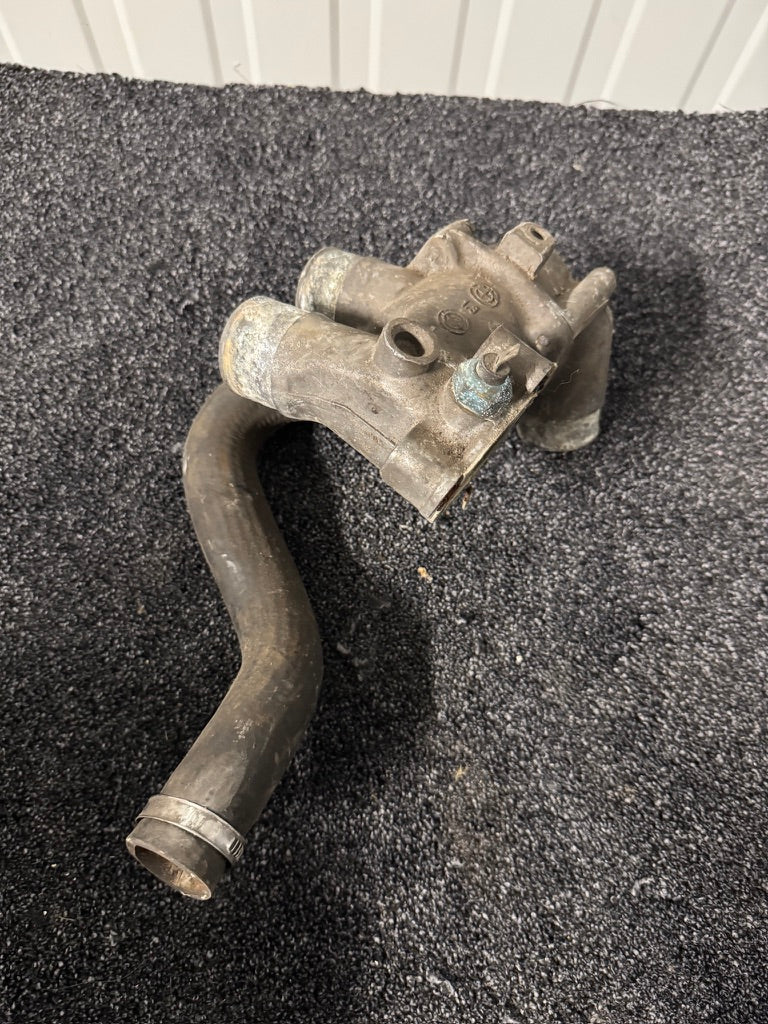

This original early-style thermostat housing has one temperature-sensor port. It is supplied with the rounded thermostat cover, one installed coolant-temperature sender and the attached coolant hose with clamp shown in the photographs.

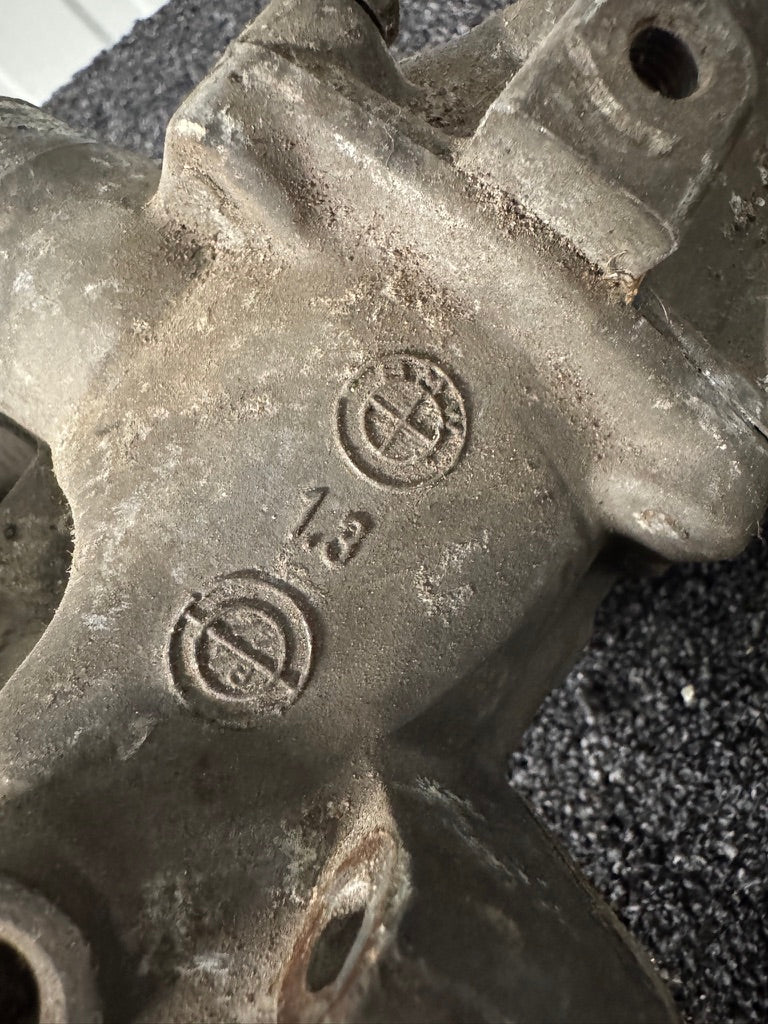

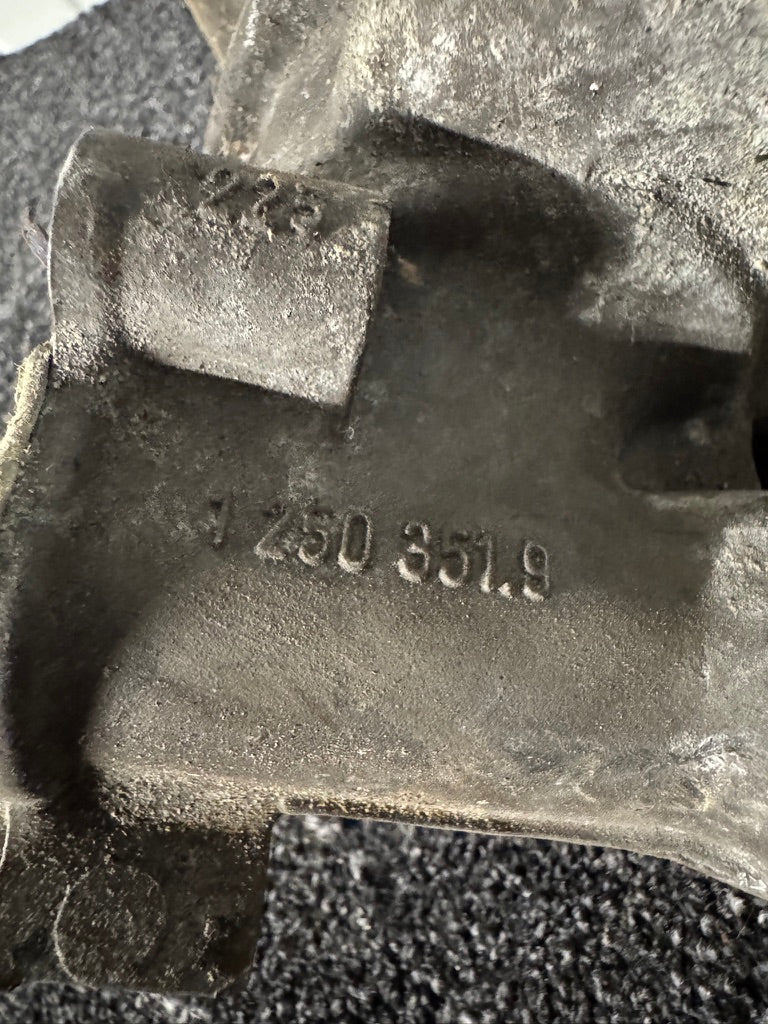

The housing is marked with casting number 1 250 351.9. This is a casting number; the corresponding BMW ordering number is 11531250352.

Because BMW used several different thermostat housings, sensor configurations and hose connections during M30 production, always compare the original part carefully before ordering.

Details

• Part: Thermostat housing assembly
• Manufacturer: BMW
• Manufacturer type: Genuine OEM/OE
• Engine family: Early BMW M30 inline-six
• Material: Cast aluminium
• Condition: Used – untested
• Approximate casting period: 1977/1978
• Casting number: 1 250 351.9
• BMW part number: 11531250352
• Sensor configuration: One sensor port
• Included: Thermostat housing, rounded cover, installed temperature sender, coolant hose and hose clamp
• Supplied exactly as shown in the photographs

BMW Thermostat Housing Part Numbers

The number 1 250 351.9 cast into the aluminium housing is a casting or manufacturing number, not the complete BMW ordering number.

The corresponding early BMW part number is:

• 11531250352 — 11 53 1 250 352

Known BMW supersession sequence:

• 11531250352 — 11 53 1 250 352
• 11531263058 — 11 53 1 263 058
• 11531271475 — 11 53 1 271 475
• 11531272703 — 11 53 1 272 703
• 11531272870 — 11 53 1 272 870
• 11531278187 — 11 53 1 278 187
• 11531710959 — 11 53 1 710 959 — final later replacement version

Later replacement housings can have different sensor ports, thermostat covers and sealing arrangements. The supersession numbers therefore do not mean that every housing is externally identical to this early one-port version.

Associated Thermostat Components

BMW parts associated with the early-style thermostat housing include:

• 11531250356 — 11 53 1 250 356 — early thermostat cover
• 11531714861 — 11 53 1 714 861 — later replacement cover
• 11531250357 — 11 53 1 250 357 — thermostat-cover paper gasket
• 11531254065 — 11 53 1 254 065 — 80°C thermostat associated with the early housing
• 11531250399 — 11 53 1 250 399 — thermostat sealing ring

These service parts are not included unless physically present and visible in the product photographs.

Installed Temperature Sender

The housing is supplied with one installed single-terminal coolant-temperature sender.

Possible BMW numbers associated with this early configuration are:

• 62110788115 — 62 11 0 788 115 — early coolant-temperature sending unit
• 62111268355 — 62 11 1 268 355 — later replacement sending unit
• 07119963200 — 07 11 9 963 200 — sealing ring

The number stamped on the installed sender is not readable. Its exact part number, specification and operation are therefore not guaranteed. The sender should be tested before installation.

Included Coolant Hose

The attached curved coolant hose appears to be an early thermostat-housing water or bypass hose, possibly:

• 11531266459 — 11 53 1 266 459
• Associated hose clamp: 07129952119 — 07 12 9 952 119

No legible BMW number is visible on the installed hose. Its exact identification is therefore not guaranteed.

Because of its age and visible condition, replacement of the hose and clamp before installation is strongly recommended.

Vehicle Compatibility

Depending on the vehicle’s production date, engine version and cooling-system configuration, this early thermostat housing may be suitable for select BMW models with an M30 engine, including:

• BMW E3: 2500, 2800, 3.0 S, 3.0 Si, 3.3 L and 3.3 Li
• BMW E9: 2500 CS, 2800 CS, 3.0 CS, 3.0 CSi and 3.0 CSL
• BMW E12: 525, 528, 528i and 530i
• Selected early BMW E23 models, including 728 and 730
• Selected early BMW E24 models, including 630 CS

Compatibility depends on the required number of sensor ports, the hose layout and the thermostat-cover design.

This early housing has only one sensor connection and should not automatically be considered suitable for later fuel-injected or Motronic vehicles requiring multiple coolant-temperature sensors.

Always verify compatibility using the vehicle’s VIN, production date and existing thermostat housing.

Condition

Used original BMW component in unrestored condition.

The housing shows visible age-related wear, oxidation, dirt, old coolant deposits and surface discolouration. The hose connections also show oxidation consistent with previous use.

The following components have not been tested:

• Aluminium thermostat housing
• Installed temperature sender
• Internal thermostat
• Coolant hose

The presence, type and operating condition of the thermostat underneath the cover have not been verified.

Cleaning and careful inspection are required before installation. Replacement of the thermostat, hose, paper gasket, sealing rings and other service parts is recommended.

Important Notes

• Compare casting number 1 250 351.9 before ordering
• Confirm that your vehicle requires a housing with one sensor port
• Compare all mounting points and hose connections
• Installed sensor is included but untested
• Exact sensor and hose part numbers are not guaranteed
• Internal thermostat has not been inspected or tested
• Old coolant hose should be replaced before use
• Always install with new gaskets and sealing rings
• Supplied exactly as photographed
• Suitable as a restoration or refurbishment core for an early BMW M30 cooling system
