Genuine BMW Manual Transmission Input Shaft Seal – NOS – 23111228314

Genuine BMW New Old Stock radial shaft seal for the input shaft of selected classic BMW manual transmissions.

This seal is installed at the front of the gearbox and prevents transmission oil from leaking around the input shaft. It is a spring-loaded radial oil seal measuring 30 × 42 × 7 mm.

BMW used this seal in various Getrag manual transmissions, including selected Getrag 240 and Getrag 245 applications. One seal is normally required per gearbox.

The corresponding BMW part number is 23111228314.

Product details

• Product: Manual transmission input shaft seal
• Alternative description: Front gearbox shaft seal
• BMW description: Shaft seal
• Manufacturer: Genuine BMW
• BMW part number: 23111228314
• Formatted BMW number: 23 11 1 228 314
• Short reference number: 1228314
• Dimensions: 30 × 42 × 7 mm
• Seal type: Spring-loaded radial shaft seal
• Position: Front of manual transmission
• Application: Gearbox input shaft
• Transmission type: Selected Getrag manual transmissions
• Required quantity: One per gearbox
• Condition: New Old Stock
• Quantity supplied: One

Vehicle compatibility

Suitable for selected manual-transmission versions of the following classic BMW model ranges:

• BMW E3 – selected 2500, 2800, 3.0 and 3.3 models
• BMW E9 – selected 2.5 CS, 2800 CS, 3.0 CS, CSi and CSL models
• BMW E12 5 Series
• BMW E21 3 Series
• BMW E23 7 Series
• BMW E24 6 Series
• BMW E28 5 Series
• BMW E30 3 Series
• BMW E34 5 Series
• Selected BMW Motorsport and competition gearbox applications

Known applications include selected:

• BMW 318i and 318is
• BMW 320i
• BMW 323i
• BMW 525 and 525i
• BMW 528 and 528i
• BMW 530i
• BMW 535i and M535i
• BMW 630 CS
• BMW 633 CSi
• BMW 733i

Compatibility depends on the fitted gearbox, production date and market specification. Not every engine or transmission used within these model ranges accepts this seal.

Always compare the BMW part number and the 30 × 42 × 7 mm dimensions with the removed seal before ordering.

Compatible gearbox applications

This seal is associated with selected classic Getrag manual transmissions, including:

• Getrag 240 applications
• Getrag 245 applications
• Additional BMW manual transmissions using a 30 × 42 × 7 mm front input-shaft seal

The gearbox identification should always be checked before installation.

BMW and reference numbers

• 23111228314 – BMW shaft seal
• 23 11 1 228 314 – Formatted BMW catalogue number
• 1228314 – Short BMW reference number
• 23121205186 – Related earlier or superseded BMW reference
• 23121202715 – Related earlier BMW reference
• Elring 505.838 – Aftermarket cross-reference

Cross-reference numbers are provided for comparison purposes. Verify the original BMW number and dimensions before ordering.

Condition

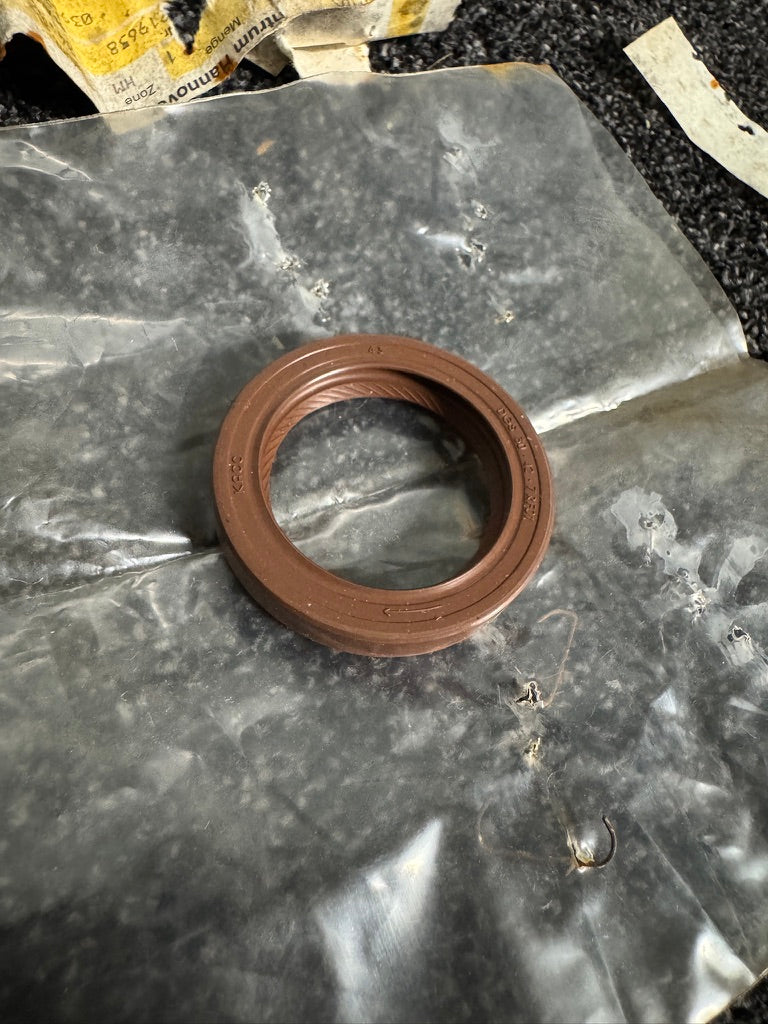

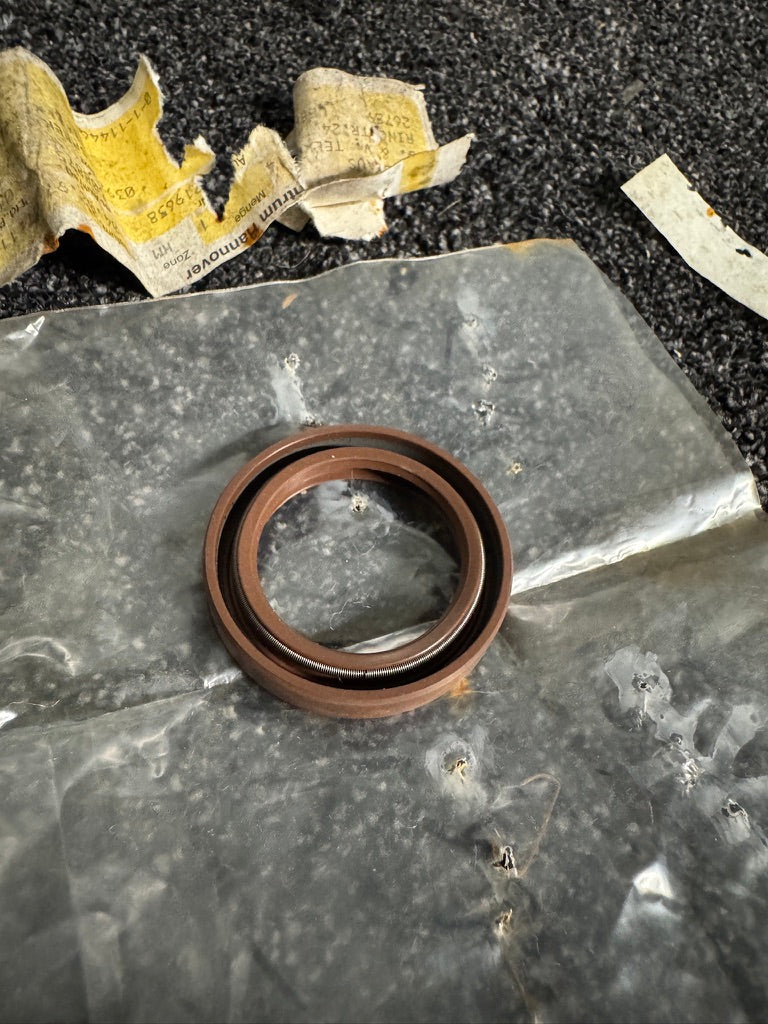

This is a genuine BMW New Old Stock component that has never been installed.

Due to long-term storage, please note:

• The original BMW paper packaging is heavily worn and torn
• The seal has light storage marks and surface discolouration
• The rubber is several decades old
• The sealing lip and external surface should be checked for hardening, cracking or deformation
• The internal garter spring appears present but should be inspected before installation

Because this is an age-sensitive rubber component, its flexibility and overall condition must be carefully checked before use. Installation is not recommended if the material has become hard, brittle or damaged.

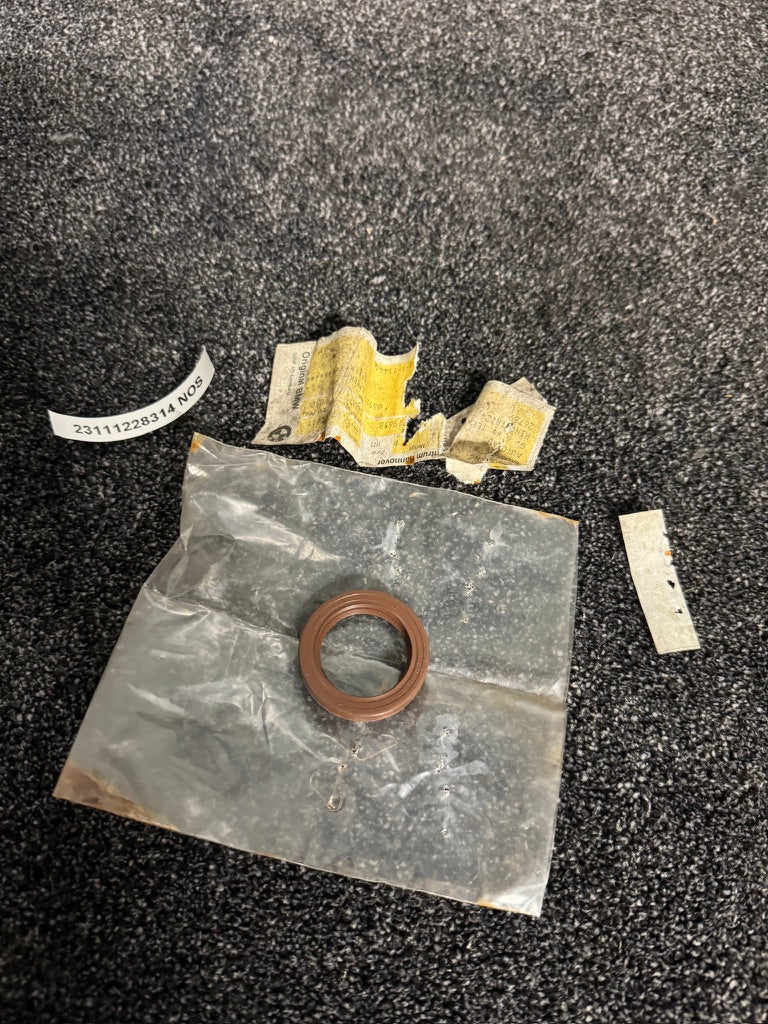

Supplied exactly as shown in the photographs.

Included

• One genuine BMW input-shaft oil seal
• Internal garter spring

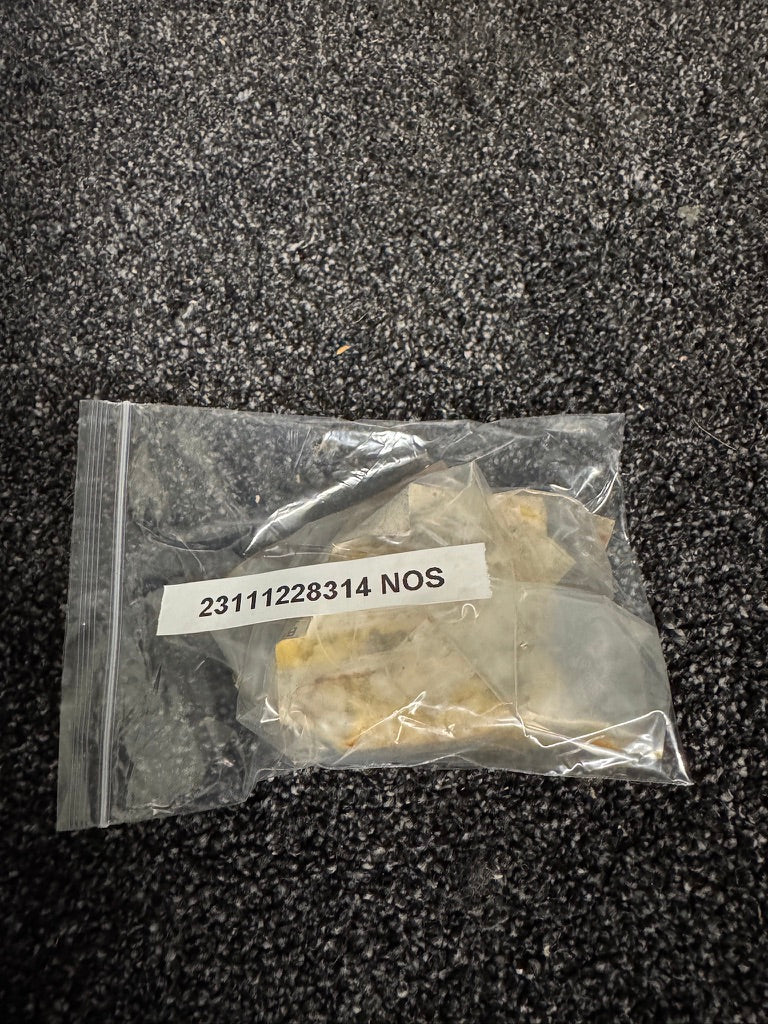

• Remaining original BMW packaging and labels shown in the photographs

No gearbox components, guide tube, bearing cover, gasket, transmission oil or installation tools are included.

Installation recommendation

Before installation:

• Confirm the BMW part number and 30 × 42 × 7 mm dimensions
• Check the seal for cracks, hardening and deformation
• Inspect the garter spring
• Check the input shaft for scoring or corrosion
• Inspect the guide tube or bearing cover
• Lightly lubricate the sealing lip with suitable transmission oil
• Install the seal squarely using an appropriate seal driver
• Observe the correct sealing-lip direction and installation depth
• Refill the gearbox with the specified transmission oil
• Check carefully for leaks after installation

Professional installation is recommended, as access generally requires removal or separation of the manual transmission.
