Goetze BMW M30 Valve Stem Seal Set – 12 Pieces – NOS – 11349059170

Original Goetze New Old Stock valve stem seal set for selected classic BMW models equipped with a 12-valve M30 six-cylinder engine.

These seals prevent engine oil from passing between the valve stems and valve guides into the combustion chambers. Worn valve stem seals can cause increased oil consumption, blue exhaust smoke and carbon deposits inside the engine.

The set contains 12 valve stem seals, providing one seal for each valve of a complete BMW M30 six-cylinder engine.

Manufactured by Goetze AG in West Germany in 1984. Goetze was a recognised German manufacturer of engine components and sealing products.

Product details

• Product: Valve stem seal set
• German description: Ventilschaftdichtungssatz
• Manufacturer: Goetze AG
• Application: BMW M30 six-cylinder engine
• Engine type: SOHC, 12 valves
• Number of seals: 12
• Valve-stem diameter: 8 mm
• BMW catalogue diameter: 10.8 mm
• Goetze article number: 24-30641-11/0
• BMW part number: 11349059170
• Formatted BMW number: 11 34 9 059 170
• Short reference number: 9059170
• Production date shown on packaging: 1984
• Country of manufacture: West Germany
• Condition: New Old Stock
• Quantity supplied: One complete 12-piece set
• Required quantity per engine: One set

Vehicle compatibility

Suitable for selected vehicles equipped with a compatible BMW M30 12-valve six-cylinder engine, including:

BMW E3

• BMW 2500
• BMW 2800
• BMW 3.0 S
• BMW 3.0 Si
• BMW 3.3 L
• BMW 3.3 Li

BMW E9

• BMW 2800 CS
• BMW 3.0 CS
• BMW 3.0 CSi
• BMW 3.0 CSL

BMW 5 Series E12

• BMW 525
• BMW 528
• BMW 528i
• BMW 530i
• BMW M535i

BMW 5 Series E28

• BMW 525i with M30 engine
• BMW 528i
• BMW 533i
• BMW 535i
• BMW 535is
• BMW M535i

BMW 5 Series E34

• BMW 530i with M30 engine
• BMW 535i with M30 engine

BMW 6 Series E24

• BMW 628CSi
• BMW 630CS
• BMW 630CSi
• BMW 633CSi
• BMW 635CSi

BMW 7 Series E23

• BMW 728
• BMW 728i
• BMW 730
• BMW 732i
• BMW 733i
• BMW 735i
• BMW 745i

BMW 7 Series E32

• BMW 730i and 730iL with M30 engine
• BMW 735i and 735iL with M30 engine

Compatibility depends on the engine version, cylinder-head specification, production date and valve-stem dimensions.

This set is intended for engines using 8 mm valve stems and the corresponding 10.8 mm seal specification. It is not automatically suitable for BMW M20, M88, S38 or later multi-valve engines.

Always compare the BMW part number and seal dimensions with the components removed from the engine before ordering.

BMW and reference numbers

• 11349059170 – BMW valve stem seal repair set
• 11 34 9 059 170 – Formatted BMW catalogue number
• 9059170 – Short BMW reference number
• 9059170.4 / 90591704 – Alternative reference format
• 11341273501 – Earlier BMW number replaced by 11349059170
• 24-30641-11/0 – Goetze article number
• Elring 774.456 – Modern aftermarket cross-reference
• Victor Reinz 12-25837-03 – Modern aftermarket cross-reference
• Corteco 19033875 – Modern aftermarket cross-reference
• Payen HR663 – Aftermarket cross-reference
• Mahle SS45544 – Aftermarket cross-reference

Cross-reference numbers are provided for identification only. No alternative-brand components are included.

Condition

Original Goetze New Old Stock set manufactured in 1984 and never installed.

The seals have been stored for an extended period. Visible storage characteristics include:

• Ageing, creasing and small marks on the original paper label
• Storage dust and residue
• Light cosmetic discolouration
• Minor marks on the metal sections
• Age-related surface changes to the sealing material

Because these are more than 40-year-old elastomer components, every seal must be carefully checked for flexibility, cracking, deformation and hardening before installation.

The seals have not been function-tested. Supplied exactly as shown in the photographs.

Included

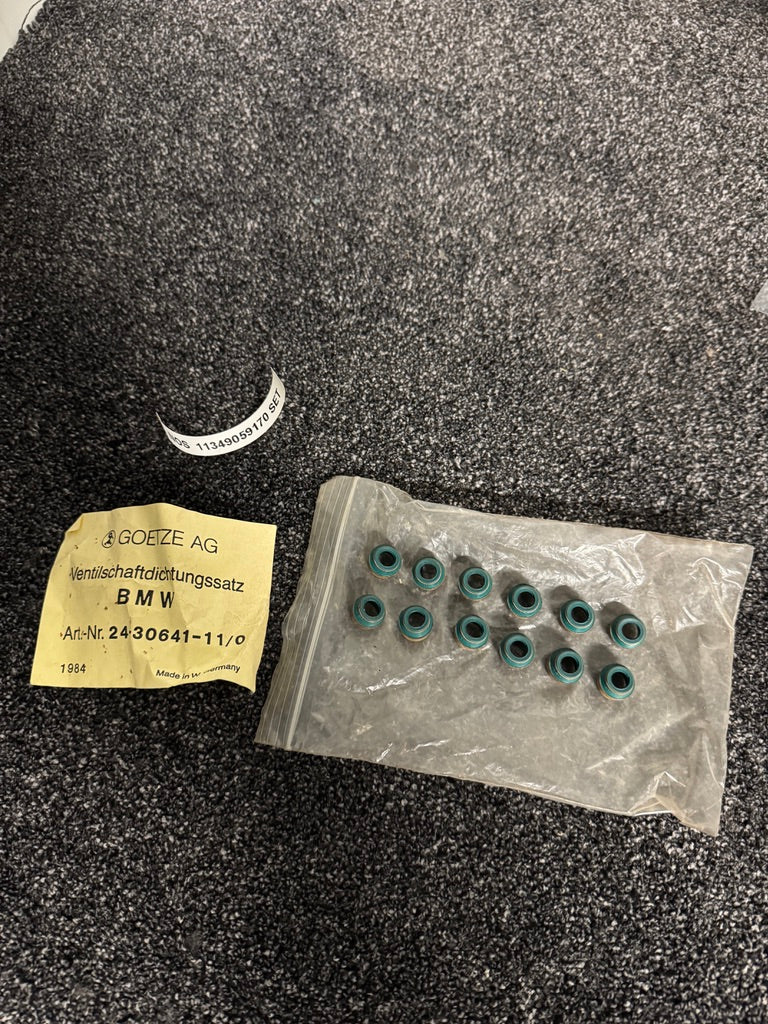

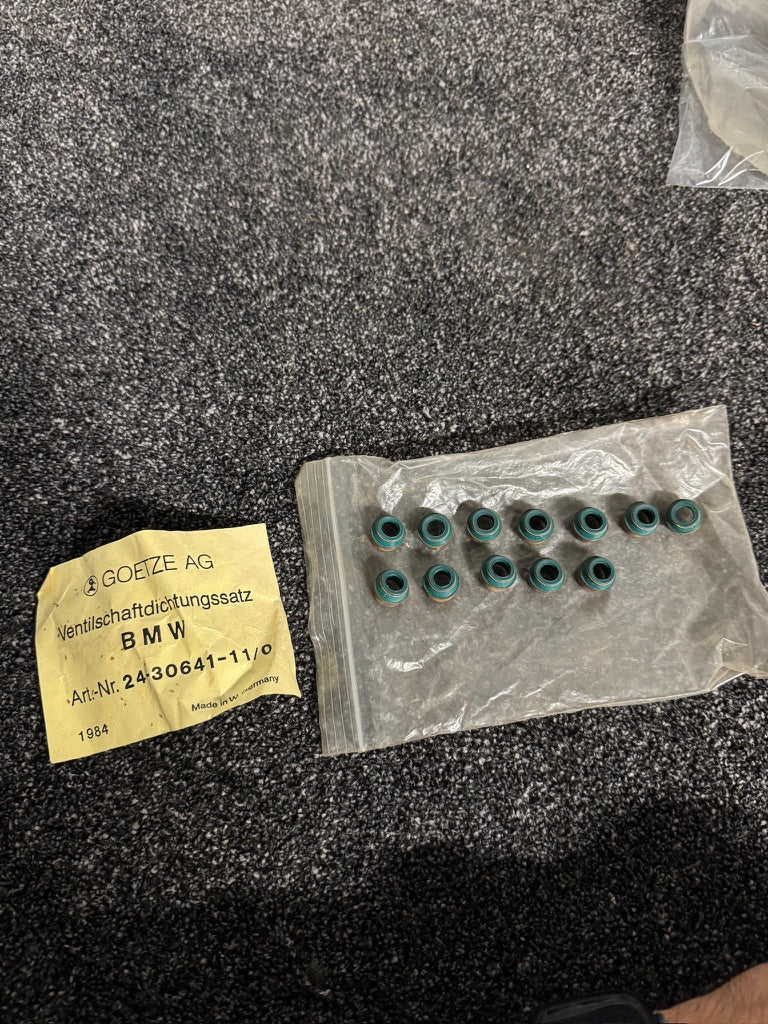

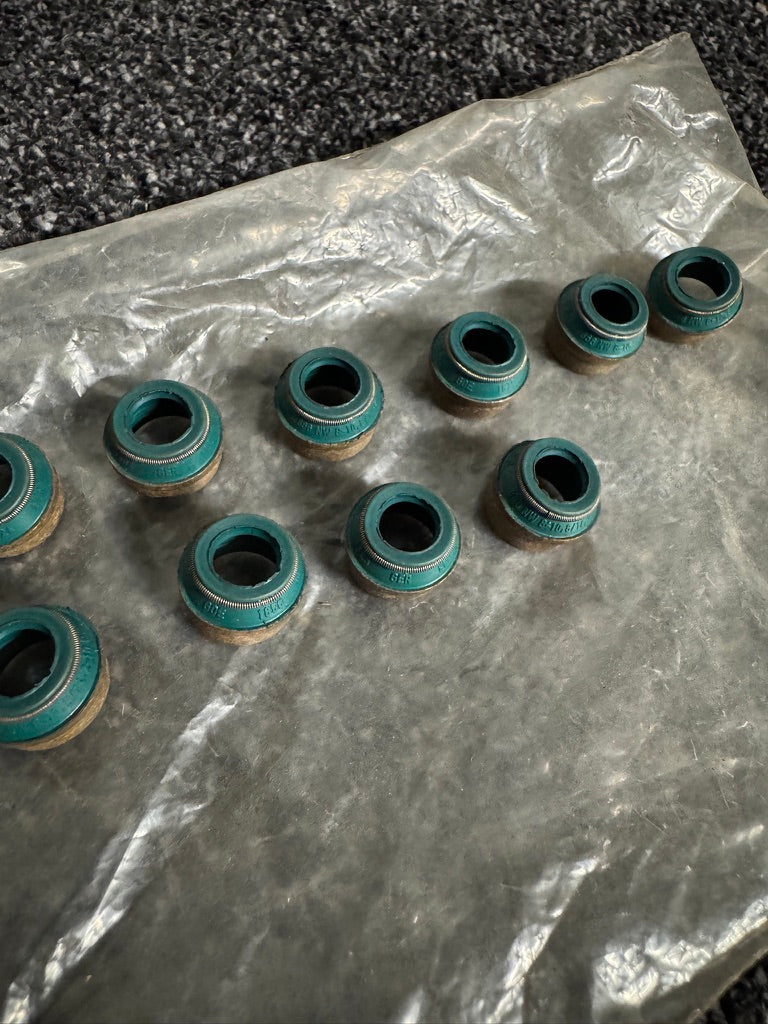

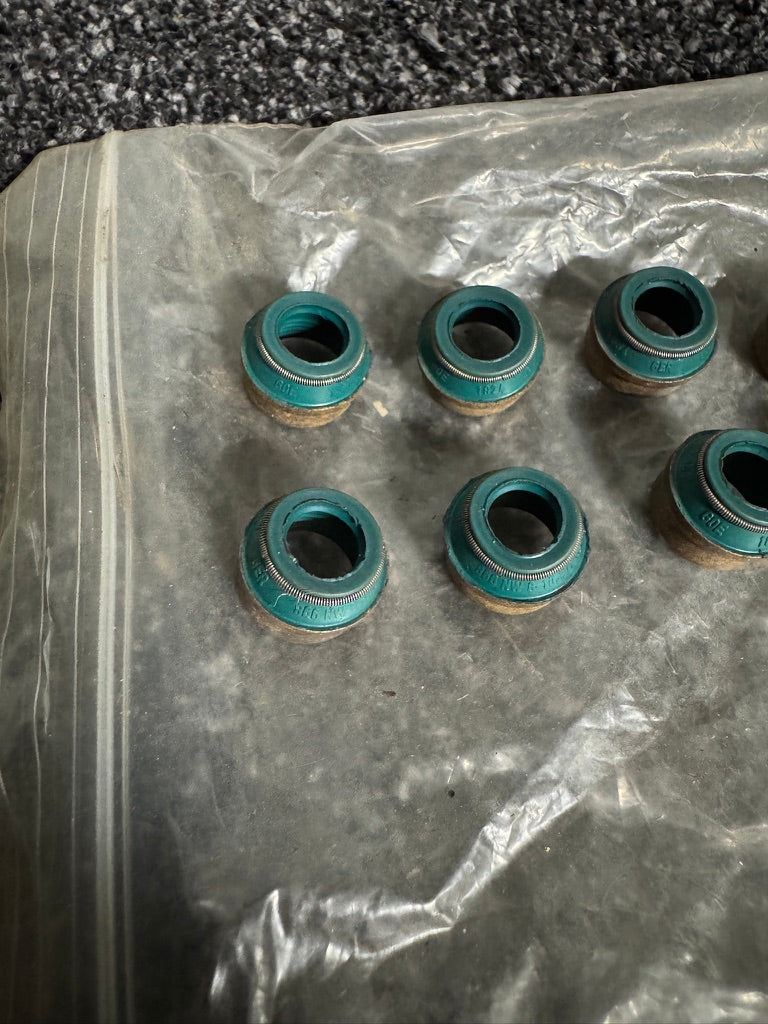

• 12 Goetze valve stem seals

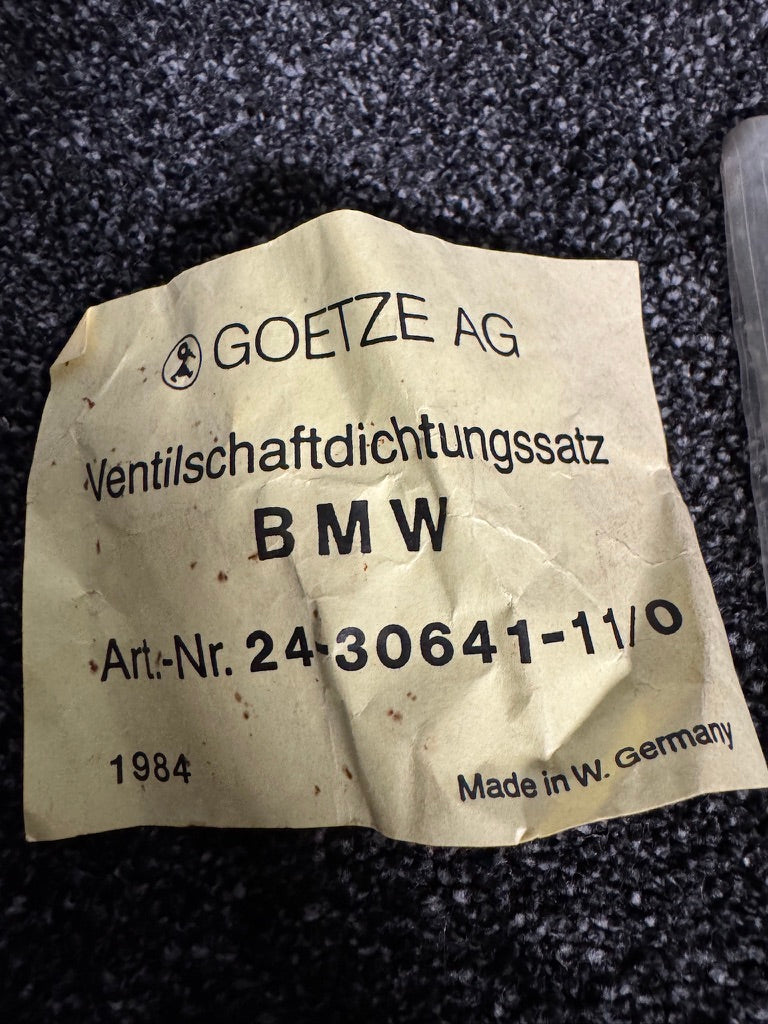

• Original Goetze identification label dated 1984
• Existing storage bag shown in the photographs
• One complete set for one compatible BMW M30 12-valve engine

Installation sleeves, valve-cover gasket, cylinder-head gasket, valve-guide components, tools and other engine gaskets are not included.

Important quantity information

This listing is for one complete set containing 12 valve stem seals.

A BMW M30 engine has six cylinders and twelve valves. One seal is used per valve, meaning that this set contains the quantity normally required for one complete engine.

The stated price is for the complete 12-piece set, not per individual seal.

Installation recommendation

Before installation:

• Confirm that the engine is a compatible BMW M30 version
• Verify the valve-stem and seal dimensions
• Check every NOS seal for flexibility, cracks and hardening
• Inspect the valve stems and valve guides for wear
• Measure valve-guide clearance where necessary
• Protect the sealing lips from valve-stem grooves during installation
• Use appropriate installation sleeves and specialist tools
• Lubricate the sealing lips with suitable clean engine oil or assembly lubricant
• Install every seal squarely and to the correct depth
• Replace the valve-cover gasket and other disturbed seals where necessary

Valve stem seal replacement requires specialist engine knowledge. Incorrect installation can damage the sealing lips or cause excessive engine-oil consumption.

Installation should be performed by a qualified engine specialist.
