Original Bosch BMW E23 / E24 Auxiliary Air Slide Valve – 0280140152 / 13631284414

Original used Bosch auxiliary air slide valve for selected BMW E23 7 Series and E24 6 Series models equipped with an M30 petrol engine.

The auxiliary air slide valve supplies additional air to the engine while it is cold, increasing the cold-start idle speed. As the valve warms up, its internal shutter gradually closes and reduces the additional airflow.

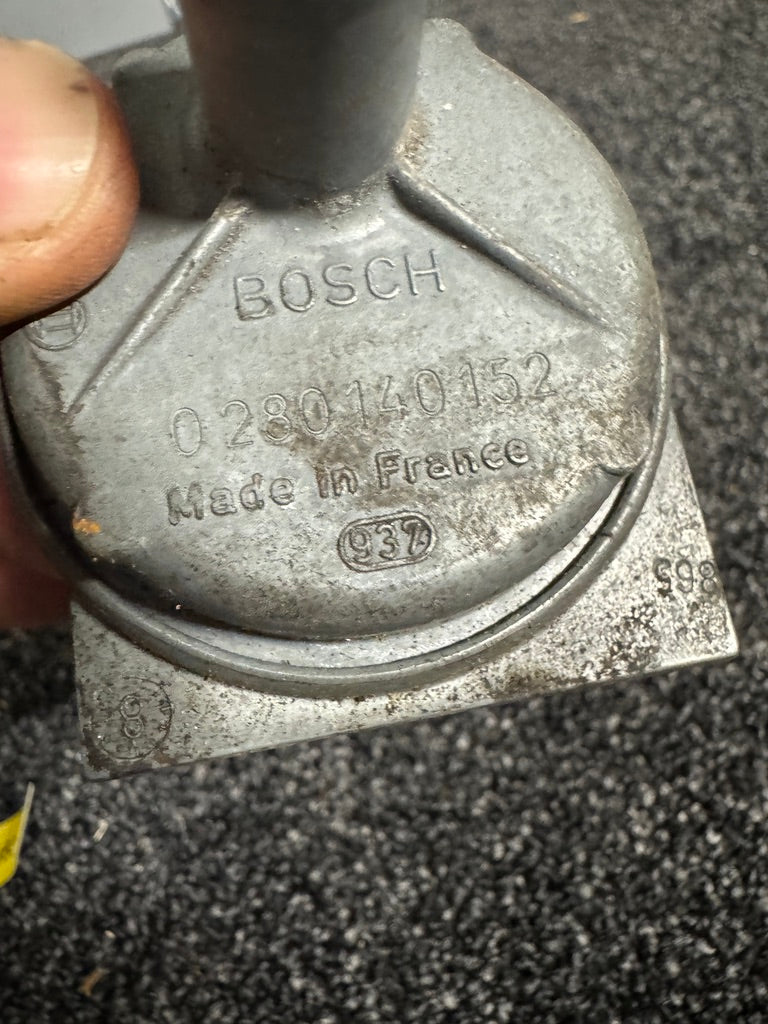

This is an original Bosch component carrying reference number 0 280 140 152. The corresponding BMW catalogue number is 13631284414.

Several visually similar Bosch auxiliary air valves were installed during this period. Compatibility must therefore be checked using both the Bosch and BMW part numbers rather than appearance alone.

Product details

• Product: Auxiliary air slide valve
• Alternative description: Cold-start auxiliary air valve
• German description: Zusatzluftschieber
• Manufacturer: Bosch
• Application: Original-equipment BMW component
• Bosch part number: 0 280 140 152
• Compact Bosch number: 0280140152
• BMW part number: 13631284414
• Formatted BMW number: 13 63 1 284 414
• Short BMW reference number: 1284414
• Engine family: BMW M30

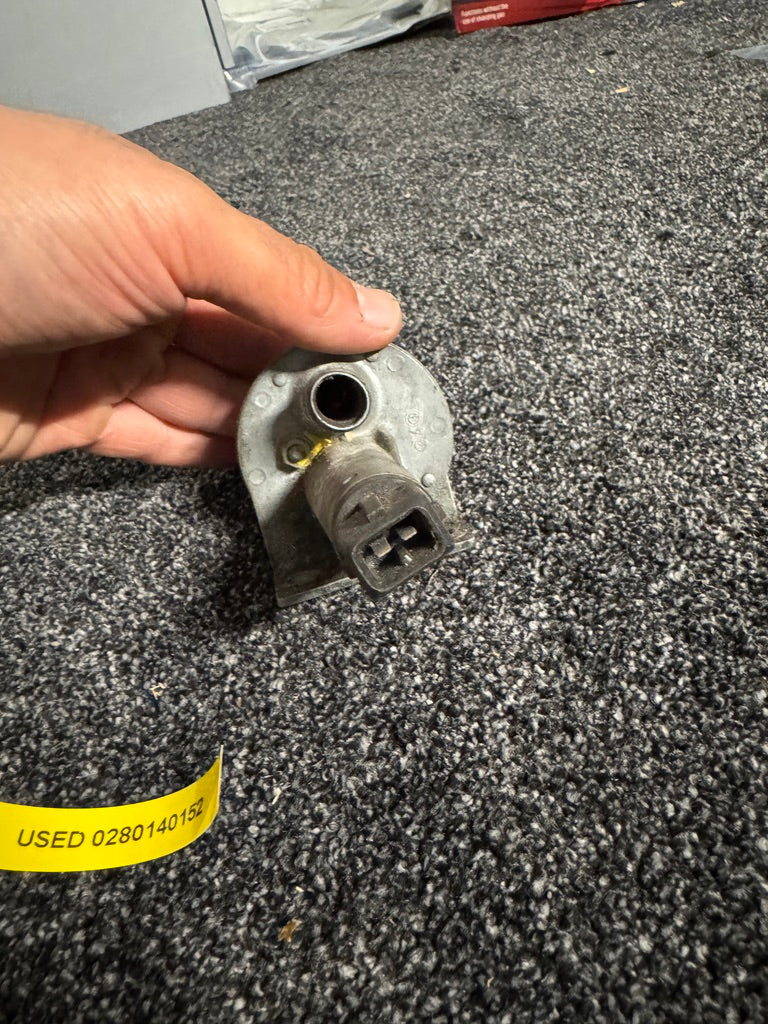

• Electrical connection: Two-pin connection

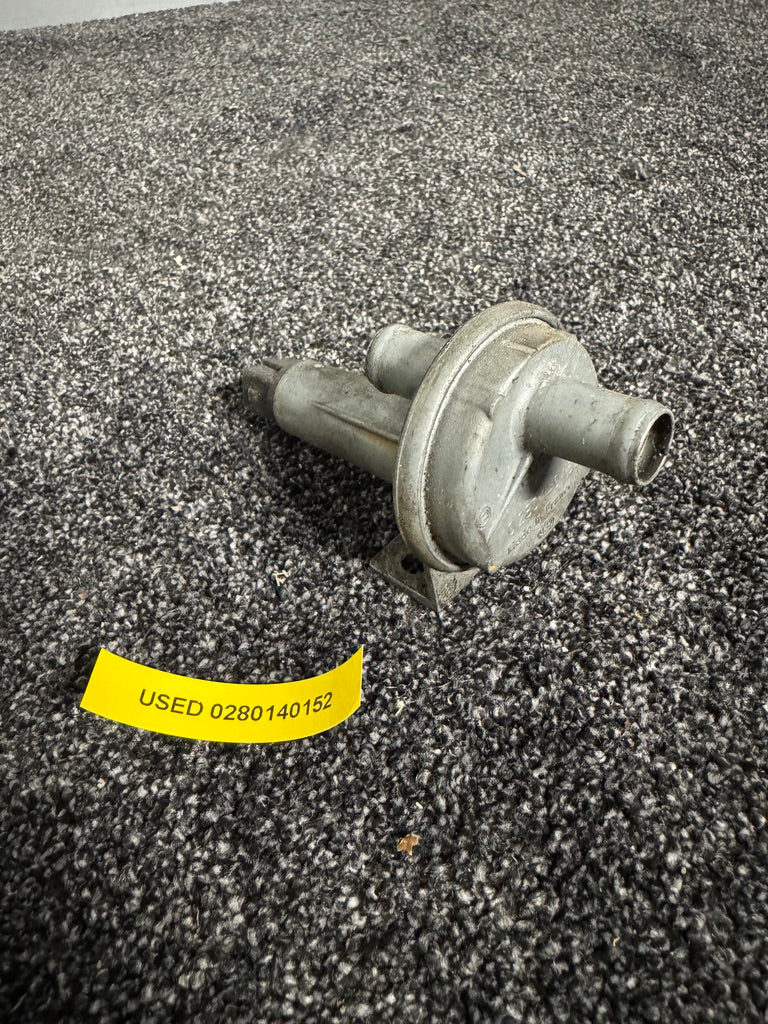

• Air connections: Two hose connections

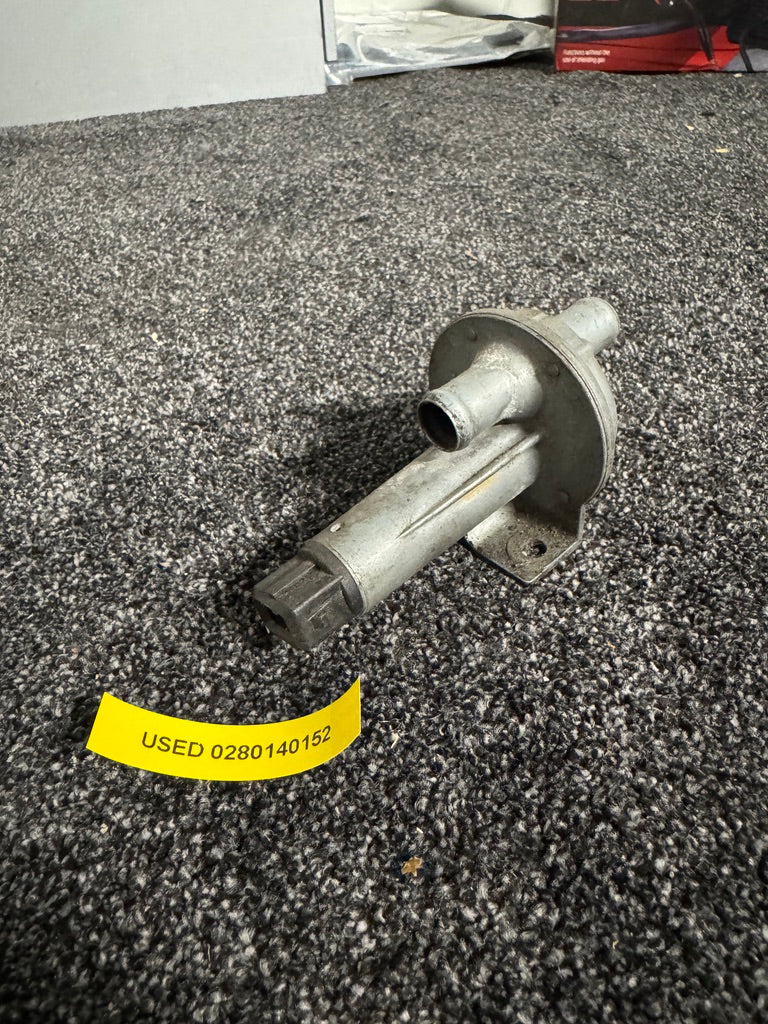

• Mounting bracket: Integrated
• Installation position: Engine intake and auxiliary-air system
• Condition: Used
• Quantity: One

Vehicle compatibility

Suitable for selected BMW vehicles fitted with the corresponding M30 intake and auxiliary-air system.

BMW 6 Series E24

• BMW 635CSi
• Primarily vehicles produced approximately from May 1982 to September 1984
• Selected European and market-specific versions without a catalytic converter

BMW 7 Series E23

• BMW 732i
• BMW 735i
• Selected South African BMW 733i versions
• Selected South African BMW 745i versions with the corresponding engine and intake system

Exact compatibility depends on the model, production date, engine version, transmission, country specification and emissions equipment.

This valve must not be assumed to fit every E23 or E24. Earlier and later vehicles may use different Bosch auxiliary air valves that appear almost identical but have different calibration, hose orientation or part numbers.

Always compare:

• Bosch number 0 280 140 152
• BMW number 13631284414
• Electrical connector
• Hose-connection diameter and orientation
• Mounting bracket
• Original valve fitted to the vehicle

Reference numbers

• 0280140152 – Bosch auxiliary air slide valve
• 0 280 140 152 – Formatted Bosch reference
• 13631284414 – BMW additional air slide valve
• 13 63 1 284 414 – Formatted BMW catalogue number
• 1284414 – Short BMW reference number

Do not confuse this valve with Bosch versions such as 0 280 140 040, 0 280 140 124, 0 280 140 133 or other visually similar auxiliary air slide valves.

Function

When the engine is cold, the valve allows additional air to bypass the closed throttle valve. This increases the cold idle speed and helps the engine run smoothly during warm-up.

The electrical heating element and rising engine temperature gradually close the internal air shutter. Once the engine has warmed up, the additional airflow should be substantially reduced.

A defective or sticking auxiliary air valve may cause symptoms such as:

• Incorrect cold idle speed
• Engine stalling shortly after a cold start
• Excessively high warm idle
• Fluctuating or unstable idle speed
• Additional unmetered-air or vacuum-leak symptoms

These possible symptoms are provided for general identification purposes only and do not constitute a diagnosis.

Condition

Original used Bosch component with visible age- and use-related wear, including:

• Surface oxidation and discolouration
• Dirt and storage marks
• Cosmetic wear to the aluminium housing
• Marks around the hose connections
• Age-related wear to the mounting bracket and electrical connection

The valve has not been function-tested. Operation of the internal shutter and electrical heating element cannot be guaranteed.

Cleaning, inspection and testing are recommended before installation. Supplied exactly as shown in the photograph.

Included

• One Bosch auxiliary air slide valve
• Integrated mounting bracket
• Existing electrical connector housing shown in the photograph

No air hoses, hose clamps, wiring harness, mounting hardware, gaskets or other intake components are included.

Testing recommendation

Before installation:

• Inspect both hose connections for cracks or deformation
• Check the electrical connector and terminals
• Inspect the mounting bracket
• Look through the air passage while the valve is cold
• Confirm that the internal shutter is at least partially open when cold
• Apply the correct electrical supply and verify that the passage gradually closes
• Check the electrical heating element for continuity
• Clean the internal air passage using a suitable non-aggressive cleaner
• Allow the valve to dry completely before installation

Do not force the internal shutter with a screwdriver or other hard object, as this may damage the mechanism or calibration.

Because the valve is supplied untested, professional inspection is recommended before use.
