Original Bosch BMW E23 E24 E28 M30 Auxiliary Air Slide Valve – 0280140133 / 13631274606

Original used Bosch auxiliary air slide valve for selected BMW E23, E24 and E28 models equipped with an M30 petrol engine.

The valve supplies additional bypass air while the engine is cold, increasing the cold-idle speed. As the valve warms up, its internal shutter gradually closes and reduces the additional airflow.

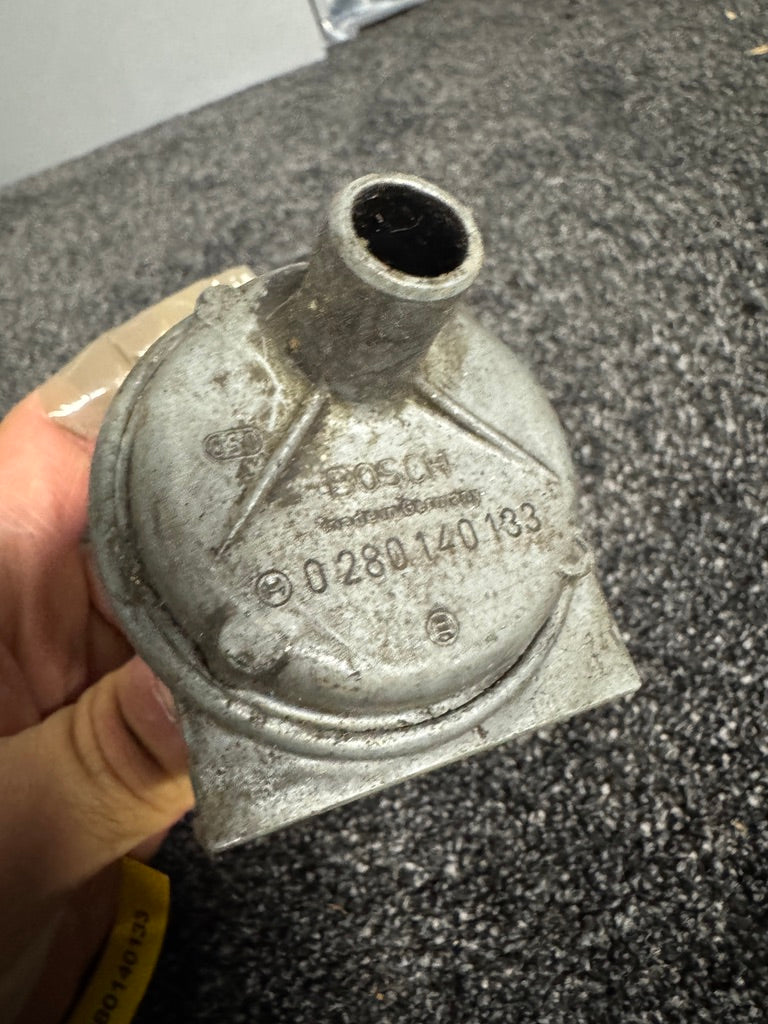

This original Bosch component carries reference number 0 280 140 133. The corresponding BMW catalogue number is 13631274606.

Several visually similar Bosch auxiliary air valves were fitted to classic BMW models. Compatibility must therefore be determined using the Bosch and BMW part numbers rather than appearance alone.

Product details

• Product: Auxiliary air slide valve
• Alternative description: Cold-start auxiliary air valve
• German description: Zusatzluftschieber
• Manufacturer: Bosch
• Application: Original-equipment BMW component
• Bosch part number: 0 280 140 133
• Compact Bosch number: 0280140133
• BMW part number: 13631274606
• Formatted BMW number: 13 63 1 274 606
• Short BMW reference number: 1274606
• Engine family: BMW M30

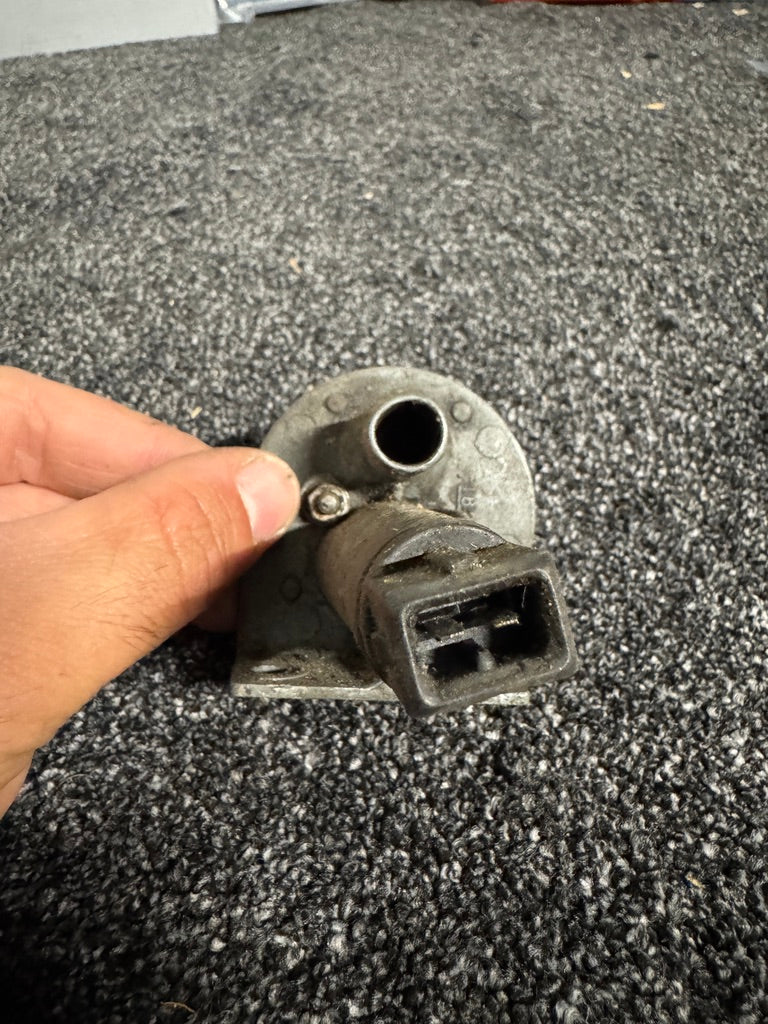

• Electrical connection: Two-pin
• Air connections: Two

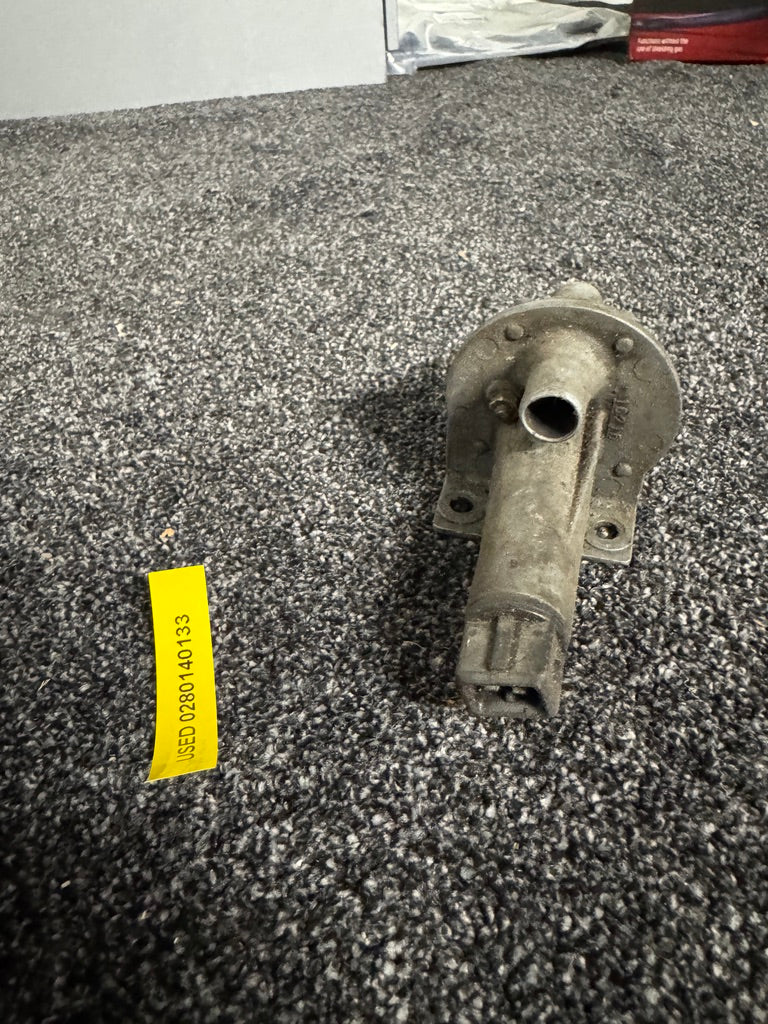

• Mounting bracket: Integrated
• Installation position: Engine intake and auxiliary-air system
• Condition: Used
• Quantity: One

Vehicle compatibility

Suitable for selected BMW vehicles fitted with the corresponding M30 auxiliary-air system.

BMW 5 Series E28

• BMW 528i

BMW 6 Series E24

• BMW 628CSi
• BMW 633CSi
• BMW 635CSi

BMW 7 Series E23

• BMW 728i
• BMW 728iS
• BMW 732i
• BMW 733i
• BMW 735i

Compatibility depends on the production date, engine version, transmission, country specification and emissions equipment.

Different auxiliary air valves were used within the same model ranges. Certain Australian, Swedish, Swiss and other market-specific vehicles may use different versions or installation arrangements.

Always compare:

• Bosch number 0 280 140 133
• BMW number 13631274606
• Electrical connector
• Hose diameters and orientation
• Mounting bracket
• Original valve fitted to the vehicle

Reference numbers

• 0280140133 – Bosch auxiliary air slide valve
• 0 280 140 133 – Formatted Bosch reference
• 13631274606 – BMW additional air slide valve
• 13 63 1 274 606 – Formatted BMW catalogue number
• 1274606 – Short BMW reference number

Do not confuse this valve with Bosch versions such as 0 280 140 124, 0 280 140 134, 0 280 140 152 or other visually similar auxiliary air valves. These versions may have different internal calibration or vehicle applications.

Function

When the engine is cold, the valve permits additional air to bypass the closed throttle valve. This increases the cold-idle speed and helps the engine run smoothly during its warm-up period.

The electrical heating element and rising engine temperature gradually close the internal shutter. Once the engine is warm, the additional airflow should be substantially reduced.

A defective or sticking valve may contribute to:

• Incorrect cold-idle speed
• Engine stalling shortly after a cold start
• Excessively high warm idle
• Fluctuating or unstable idle speed
• Air-leak or lean-running symptoms

These symptoms may also have other causes and do not constitute a diagnosis.

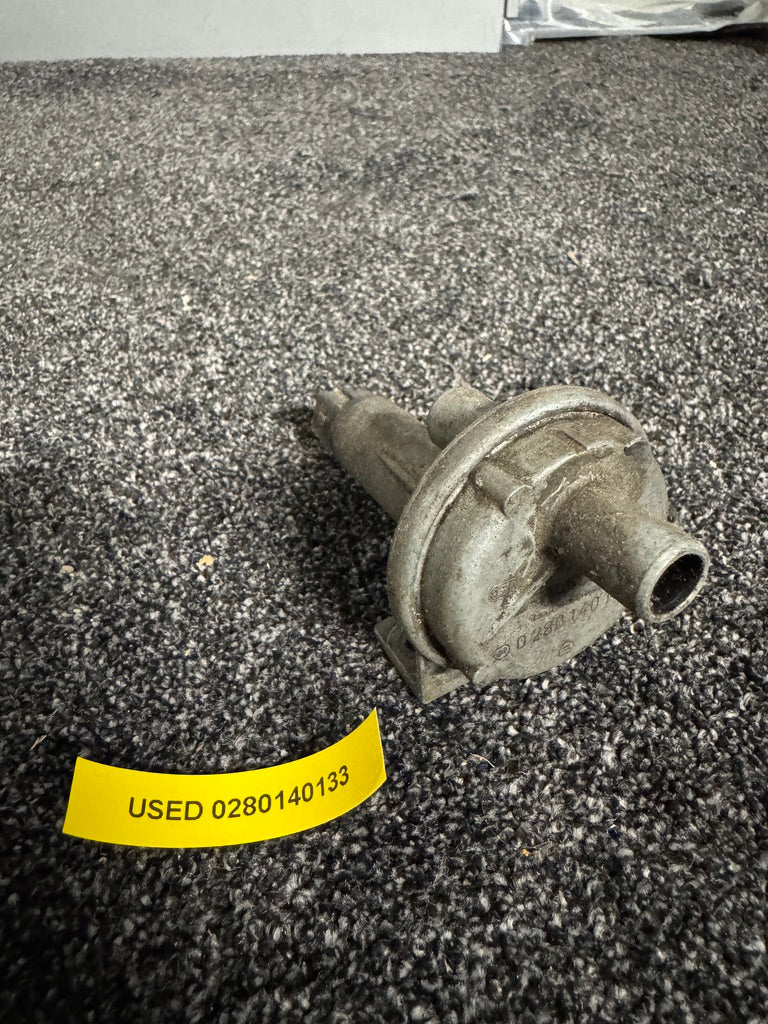

Condition

Original used Bosch component with visible age- and use-related wear, including:

• Dirt and storage marks
• Oxidation and surface discolouration
• Cosmetic wear to the metal housing
• Marks around the hose connections
• Wear to the mounting bracket
• General signs of previous installation

The valve has not been function-tested. Operation of the internal shutter and electrical heating element cannot be guaranteed.

Cleaning, inspection and testing are recommended before installation. Supplied exactly as shown in the photograph.

Included

• One original Bosch auxiliary air slide valve
• Integrated mounting bracket
• Existing electrical connector shown in the photograph

No air hoses, hose clamps, wiring harness, mounting hardware or other intake components are included.

Testing recommendation

Before installation:

• Inspect both air connections for damage or deformation
• Check the electrical connector and terminals
• Inspect the mounting bracket
• Look through the air passage while the valve is cold
• Confirm that the internal shutter is at least partially open when cold
• Check the electrical heating element for continuity
• Apply the correct electrical supply and verify that the passage gradually closes
• Clean the internal air passage using a suitable non-aggressive cleaner
• Allow the valve to dry completely before installation
• Check the complete auxiliary-air system for vacuum leaks

Do not force the internal shutter with a screwdriver or other hard object, as this may damage the mechanism or alter its calibration.
