Original Bosch BMW E28 / E30 M10 Auxiliary Air Slide Valve – 0280140171

Original used Bosch auxiliary air slide valve for selected BMW E28 and E30 models equipped with an M10 fuel-injection engine.

The auxiliary air slide valve provides the engine with additional bypass air during a cold start. This raises the cold idle speed and helps the engine run smoothly while warming up. As the valve heats up, its internal opening gradually closes and the idle speed returns to its normal operating level.

Bosch part number 0 280 140 171 corresponds with BMW part number 13631287765.

This original Bosch component is discontinued and increasingly difficult to find in usable original condition.

Product details

• Product: Auxiliary air slide valve
• Alternative descriptions: Auxiliary air valve, cold-start air valve, additional air slide
• German description: Zusatzluftschieber
• Manufacturer: Bosch
• BMW part number: 13631287765
• Formatted BMW number: 13 63 1 287 765
• Short BMW reference number: 1287765

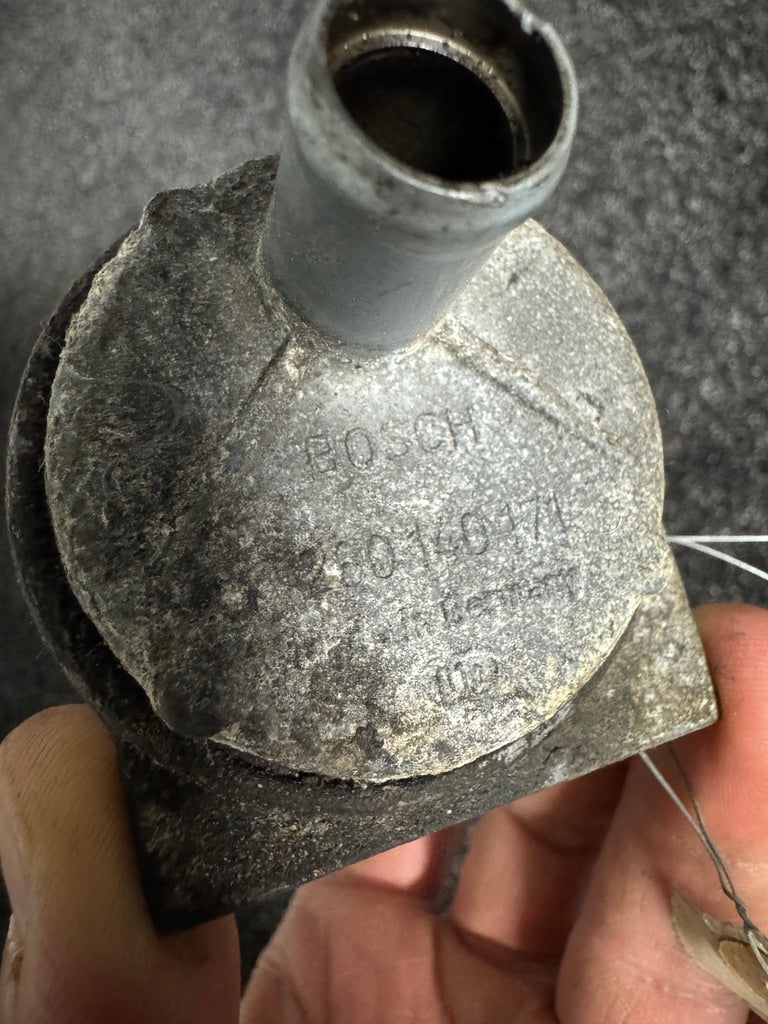

• Bosch part number: 0 280 140 171
• Bosch number without spaces: 0280140171
• Engine family: BMW M10
• Fuel system: Electronic fuel injection
• Function: Provides additional bypass air during cold running
• Installation position: Engine intake and fuel-injection system
• Material: Cast-metal housing
• Condition: Used
• Quantity: One

Vehicle compatibility

Suitable for selected M10 fuel-injected BMW models, including:

BMW 5 Series E28

• BMW 518i with M10 engine

BMW 3 Series E30

• BMW 316i with M10 engine
• BMW 318i with M10 engine

Compatibility depends on the vehicle model, production date, market specification and installed fuel-injection system.

This valve is not generally suitable for carburettor-equipped BMW 518 or 316 models, later M40-powered vehicles or vehicles using a different idle-control system.

Always compare the Bosch number, BMW part number, housing shape, electrical connection, mounting arrangement and hose connections with the original component before ordering.

BMW and Bosch numbers

• 13631287765 – BMW additional air slide valve
• 13 63 1 287 765 – Formatted BMW catalogue number
• 1287765 – Short BMW reference number
• 0 280 140 171 – Bosch manufacturer number
• 0280140171 – Bosch number without spaces

Bosch number 0 280 140 171 is also listed as replacing or superseding Bosch number 0 280 140 169 in certain aftermarket catalogues. Compatibility must still be confirmed using the number fitted to the vehicle.

Condition

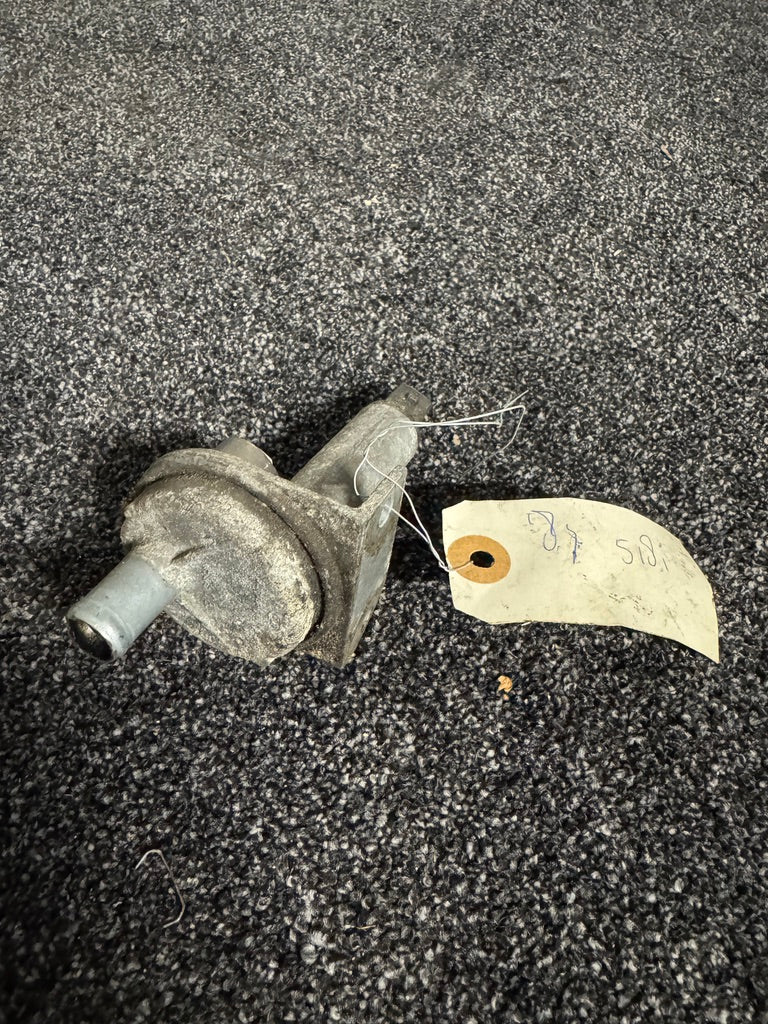

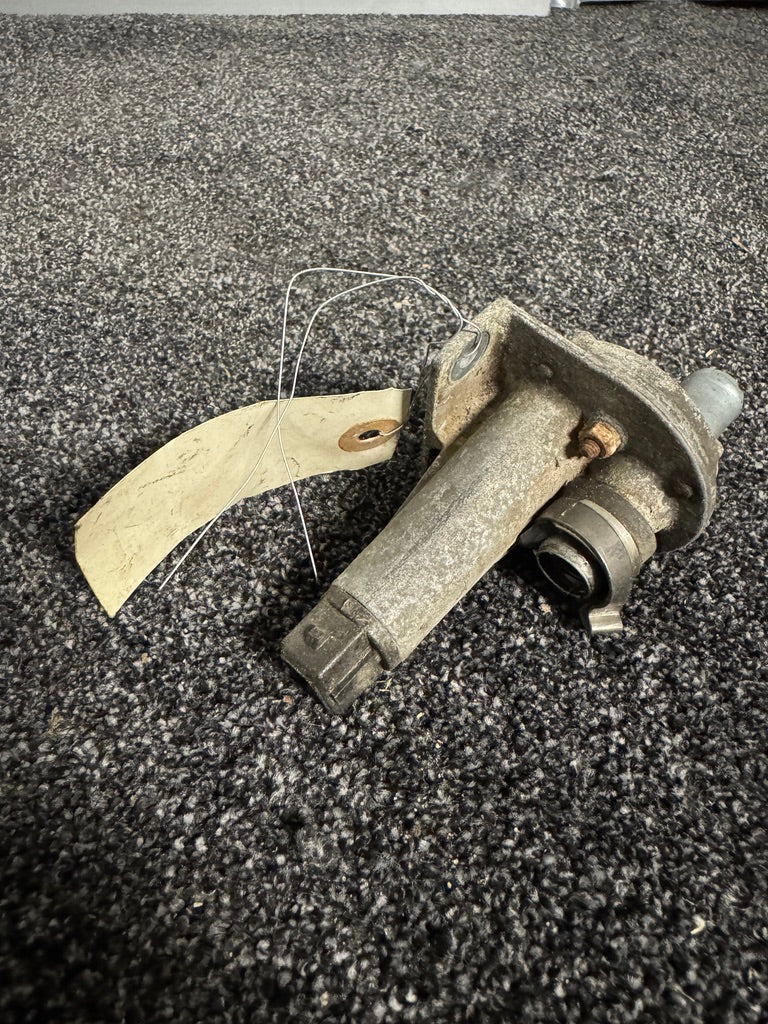

Original used Bosch component with visible age- and use-related wear, including:

• Dirt and storage marks
• Oxidation and weathering on the cast-metal housing
• Surface discolouration
• Marks around the hose connections
• Cosmetic wear on the mounting section
• General wear consistent with an original engine-management component

The valve has not been cleaned, restored or function-tested.

The operation of the internal air slide and heating element cannot be guaranteed. Inspection and testing are required before installation. Supplied exactly as shown in the photographs.

Included

• One original Bosch auxiliary air slide valve
• Integrated mounting section
• Existing connections shown in the photographs

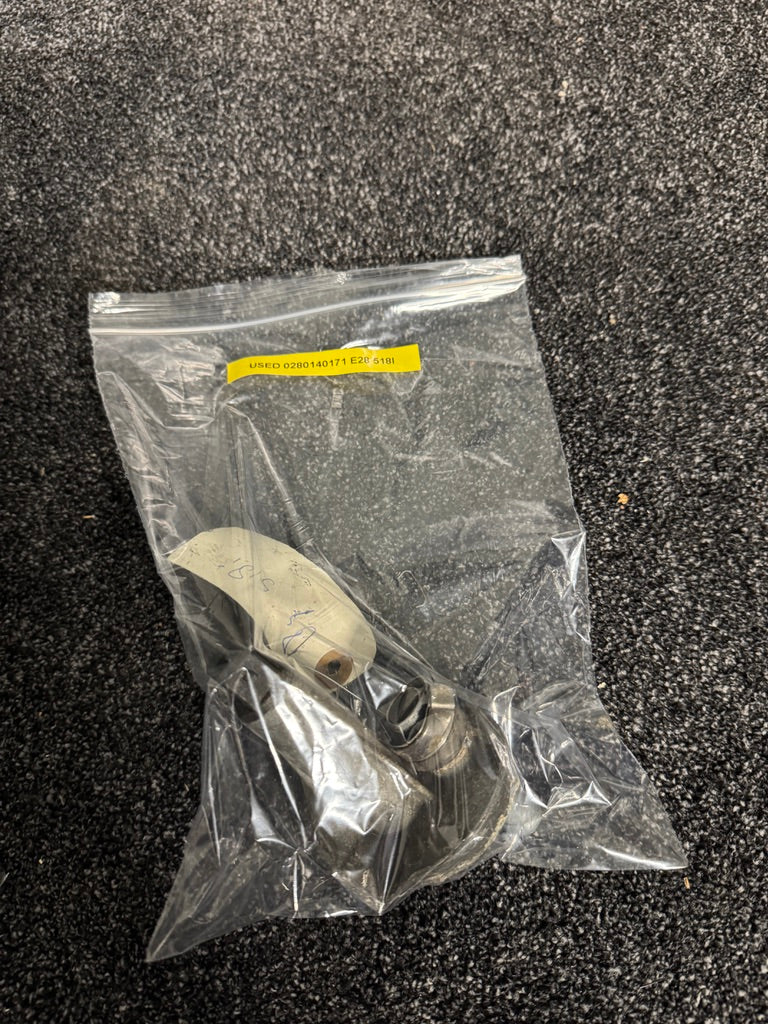

• Supplied exactly as pictured

No air hoses, clamps, wiring, electrical plug, mounting nuts, gaskets or additional installation components are included unless visible in the photographs.

Testing and installation recommendation

Before installation:

• Verify Bosch number 0 280 140 171

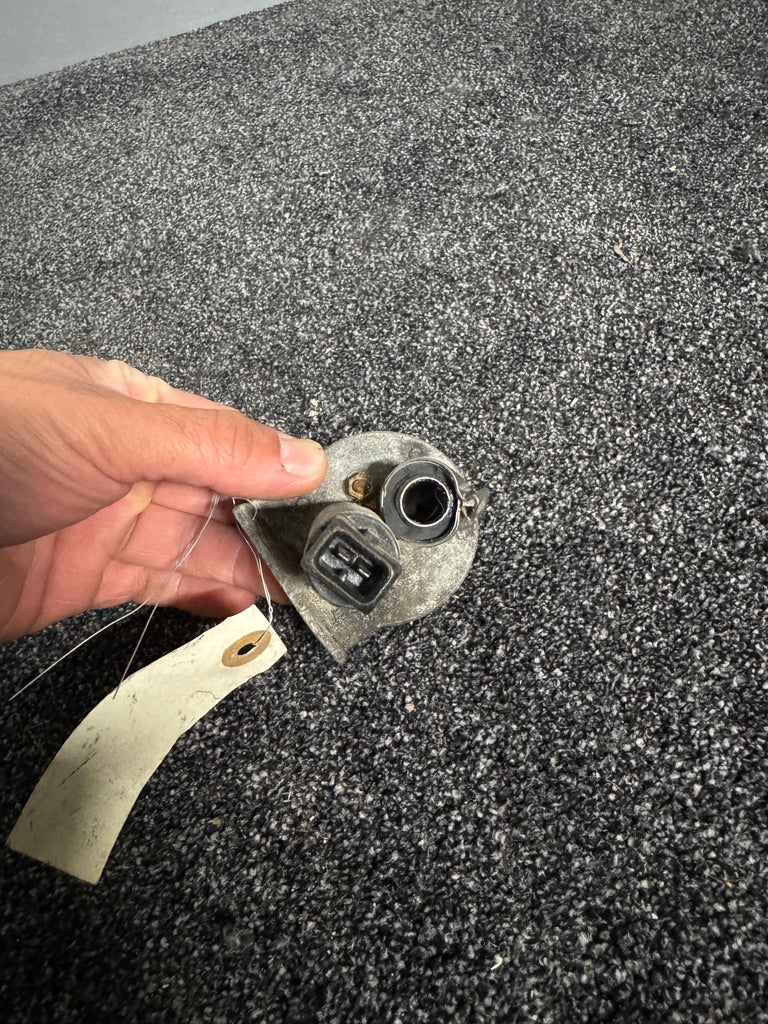

• Compare all hose and electrical connections
• Inspect the housing for cracks or serious corrosion
• Check that the air passage is open when the valve is cold
• Measure the resistance of the internal heating element
• Bench-test the valve using the correct electrical supply
• Confirm that the internal air passage gradually closes as the valve warms up
• Clean the air passages carefully
• Replace deteriorated air hoses and clamps
• Check the engine for vacuum leaks after installation

If the internal slide does not move, remains permanently open or does not close when heated, the valve may require professional overhaul.

Installation and testing should preferably be performed by someone familiar with Bosch fuel-injection systems and classic BMW M10 engines.
